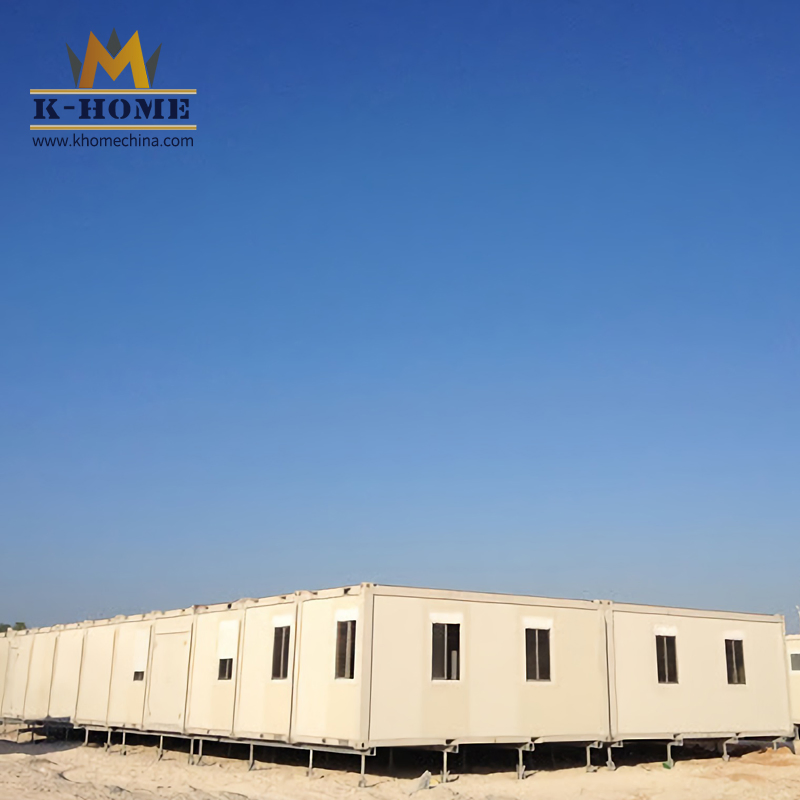

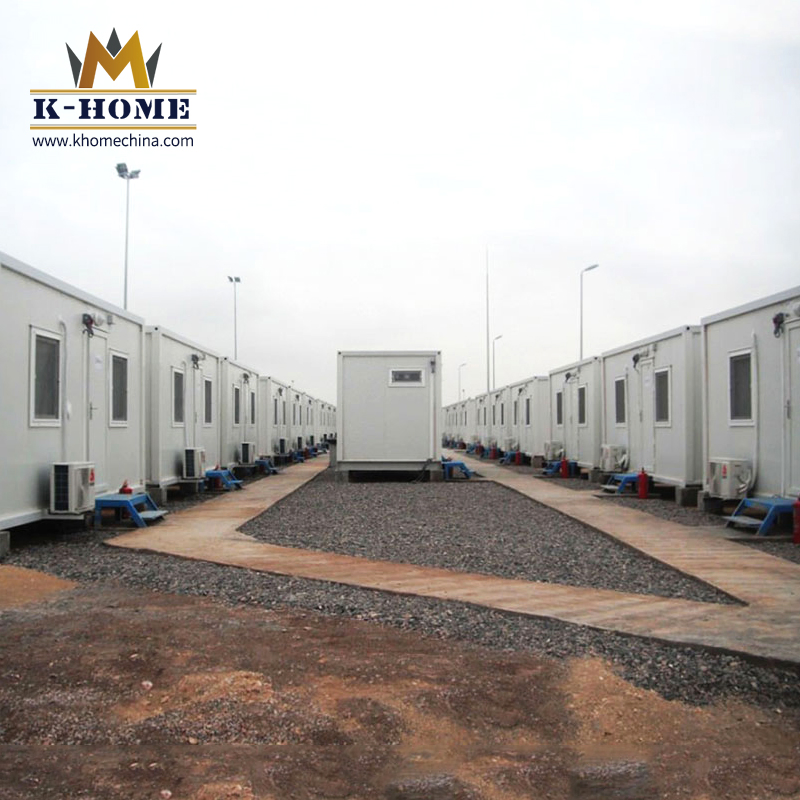

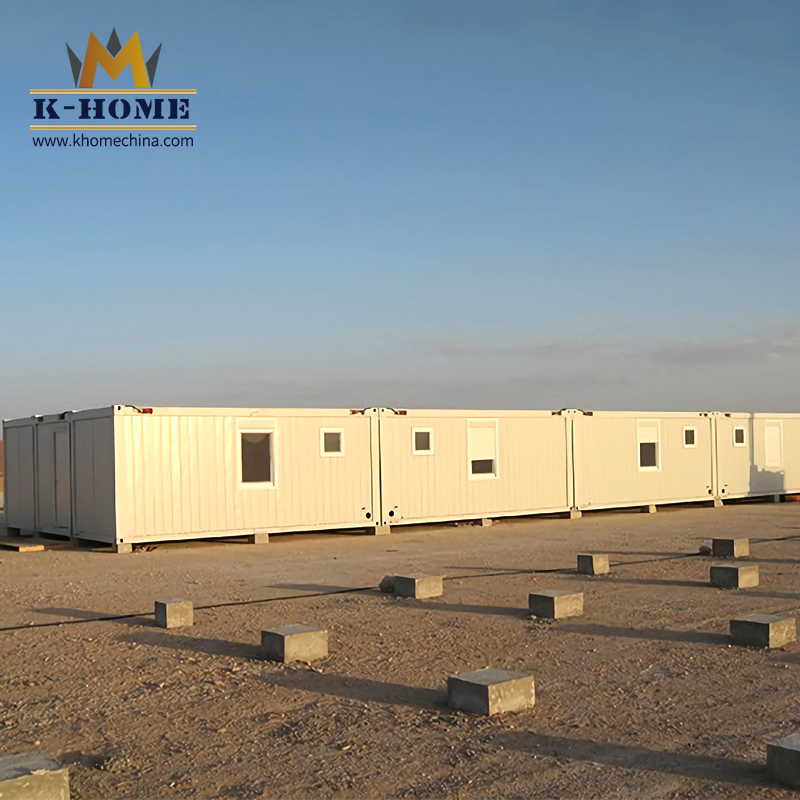

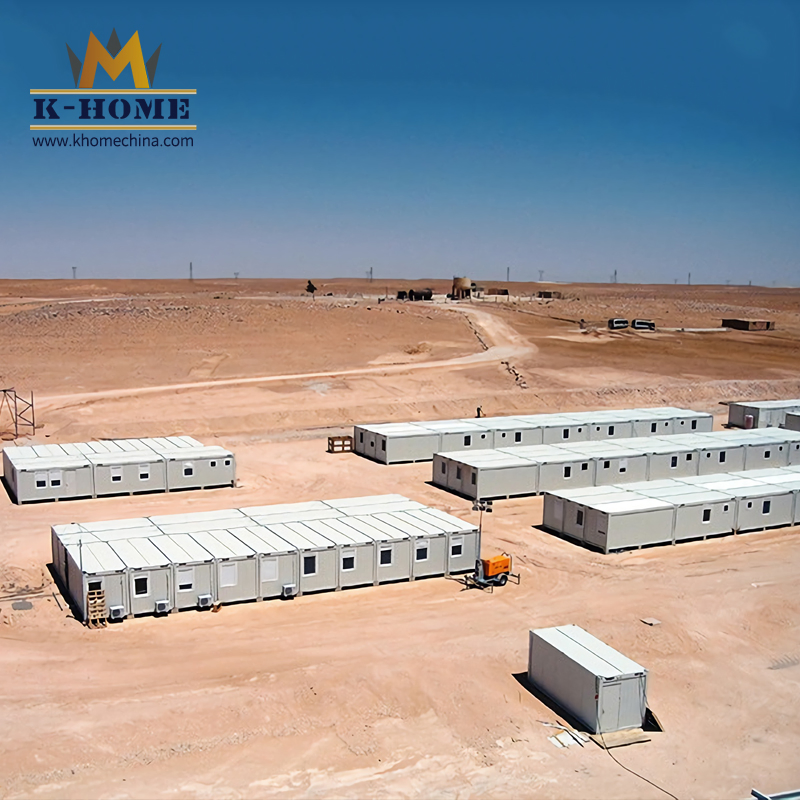

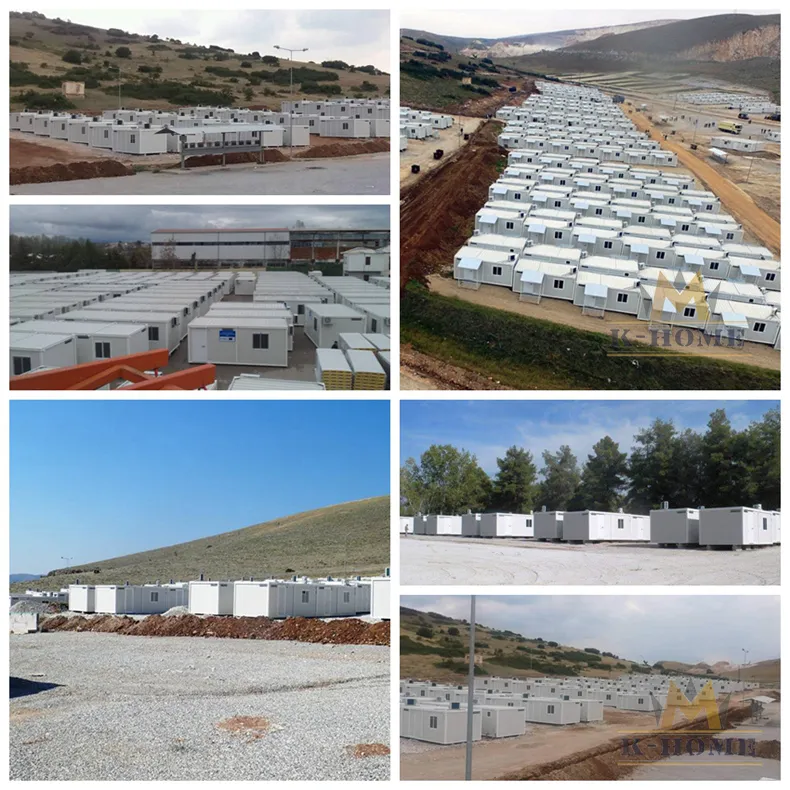

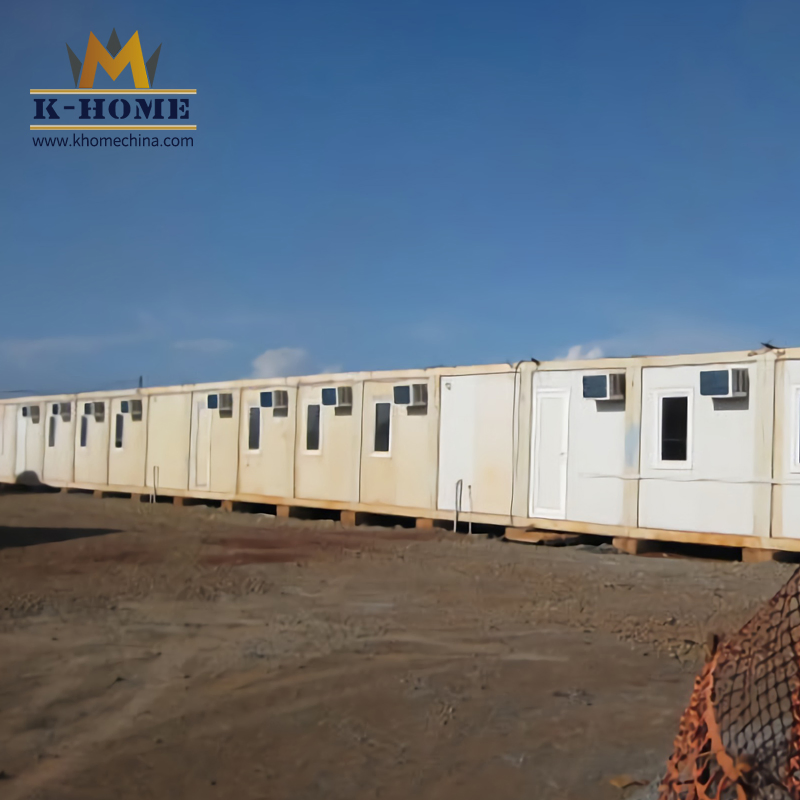

Oilfield Remote Site Temporary Workforce Housing
Modular Container Standard Equipment includes two windows, one door, distribution box, fluorescent lamp, socket, and more. If you need to build temporary accommodation in a remote site, our portable house is your ideal solution.
This portable cabin is widely used as remote site camps, temporary dwellings, workers' camps, warehouses, temporary schools, military camps, and site offices. It is equipped with toilet boxes, shower boxes, etc. The main frame is made of special steel plate, and the side plate adopts special sound insulation packing, offering advantages in heat insulation, sound insulation, cold prevention, and fire prevention. Simple to install and move, it is designed for long-term use.

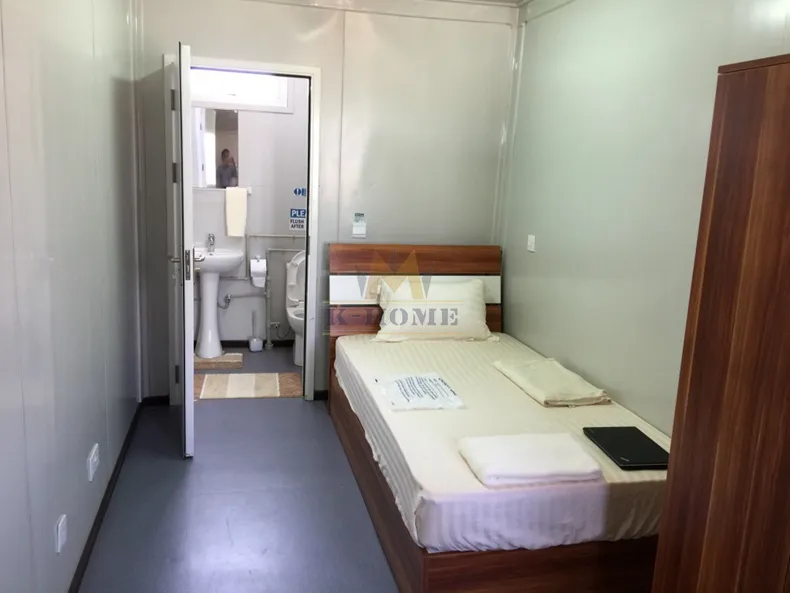

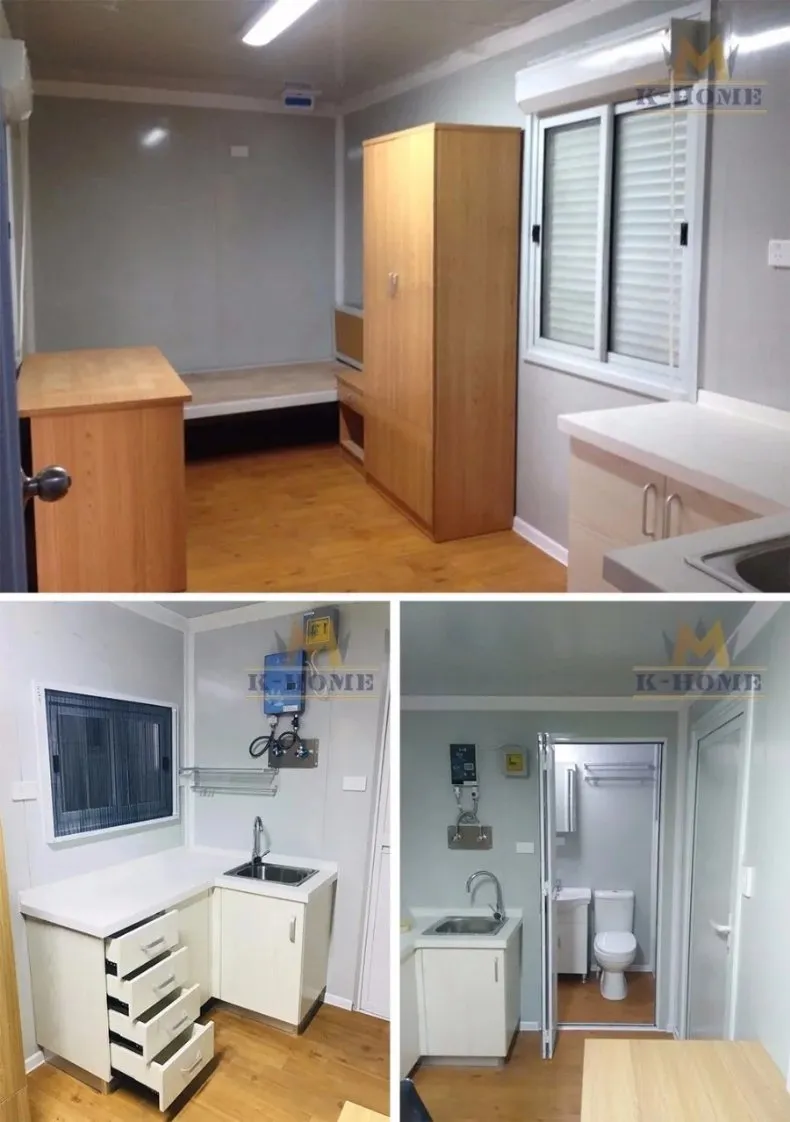

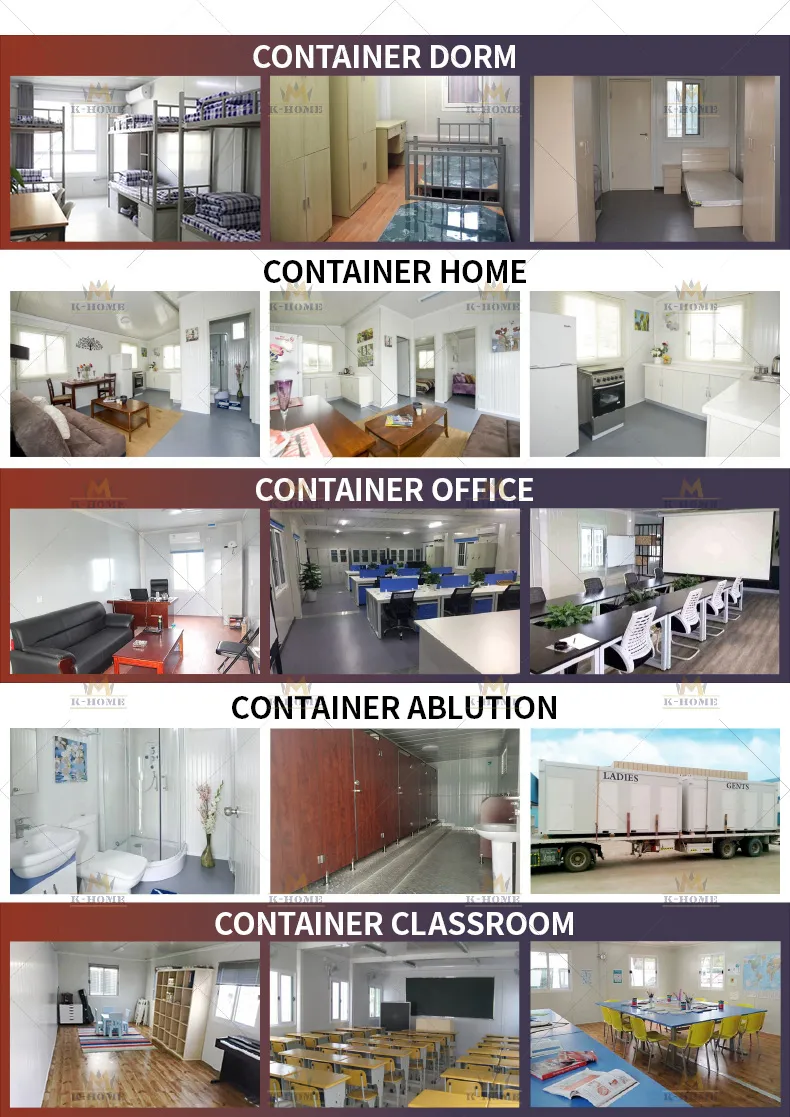

INSIDE SHOW
| Size Details | Number of Floors | Three Floors (Max) |
| Unit Area | 18m² | |
| Dimensions | Length: 6m / Width: 3m / Height: 2.8m | |
| Type | Container House | |
| Floor System | Steel Frame | 3mm Galvanized Steel structure + 1.5mm secondary beam |
| Floor material | 15mm MGO board + PVC leather floor | |
| Roof System | Frame | Q235 galvanized fitting |
| Insulation | 0.4mm pre-coated steel sheet + 50mm glass wool | |
| Ceiling | Shaped steel plate with various patterns | |
| Wall System | Panel | 50mm Sandwich Panel (0.35mm color steel outside/inside) |
| Electric | Components | LED lights, double sockets, air-switch, safety protection device |
