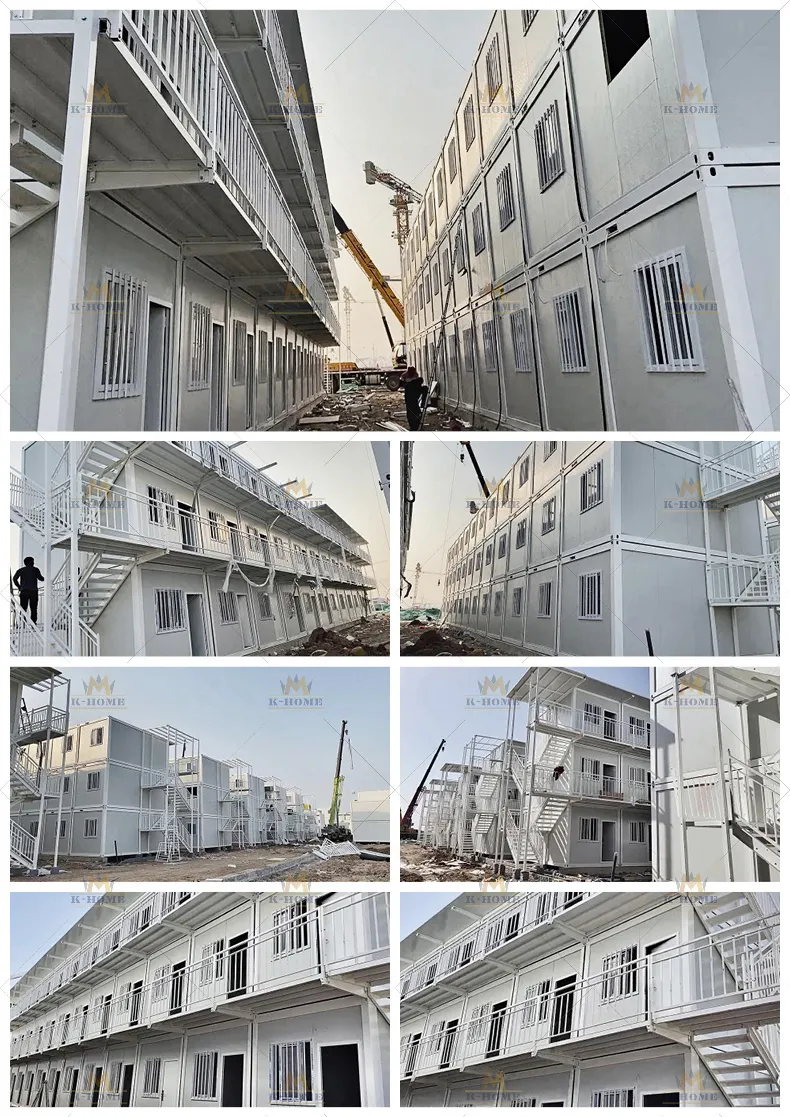

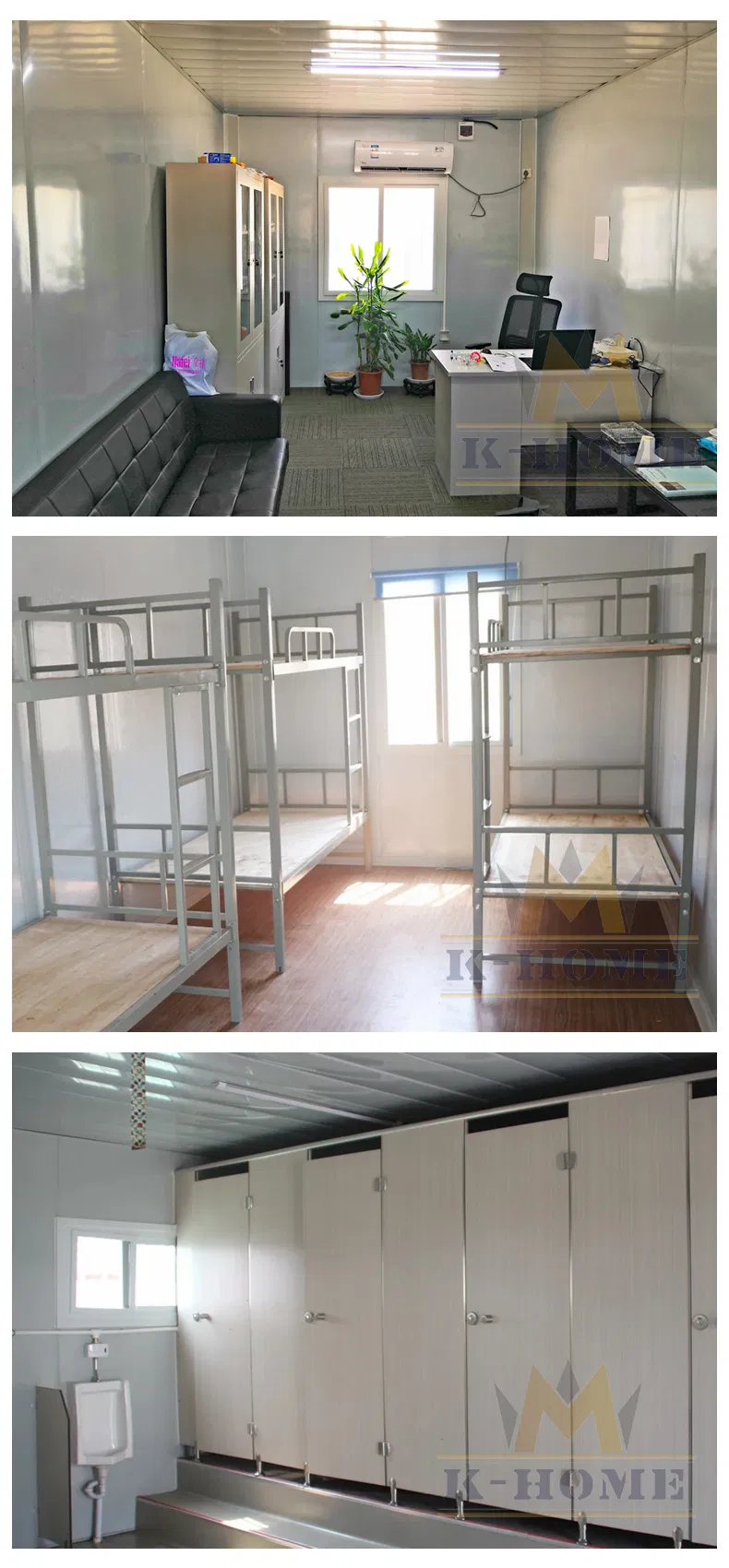

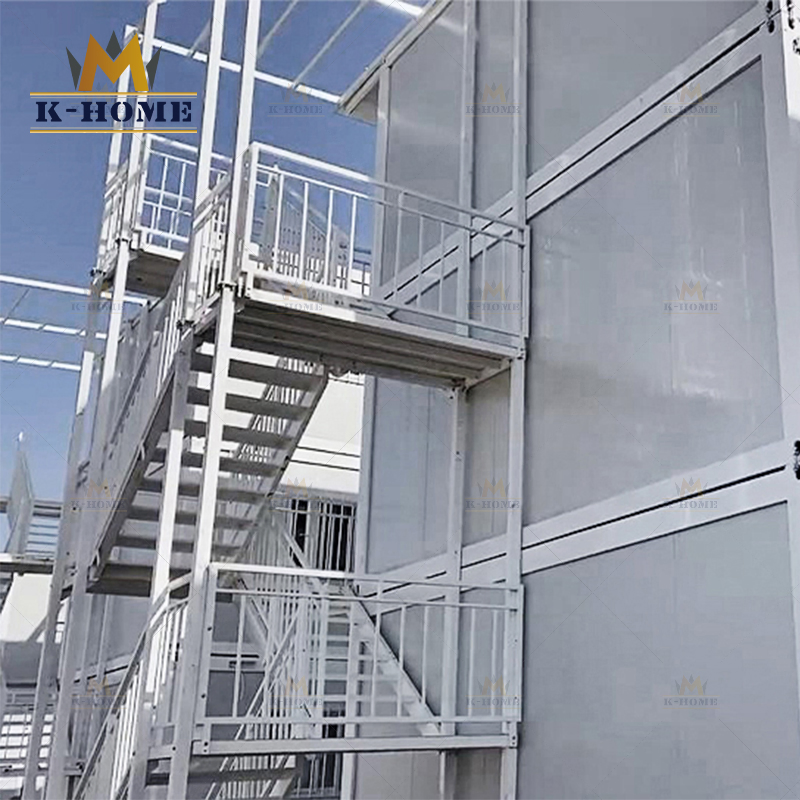

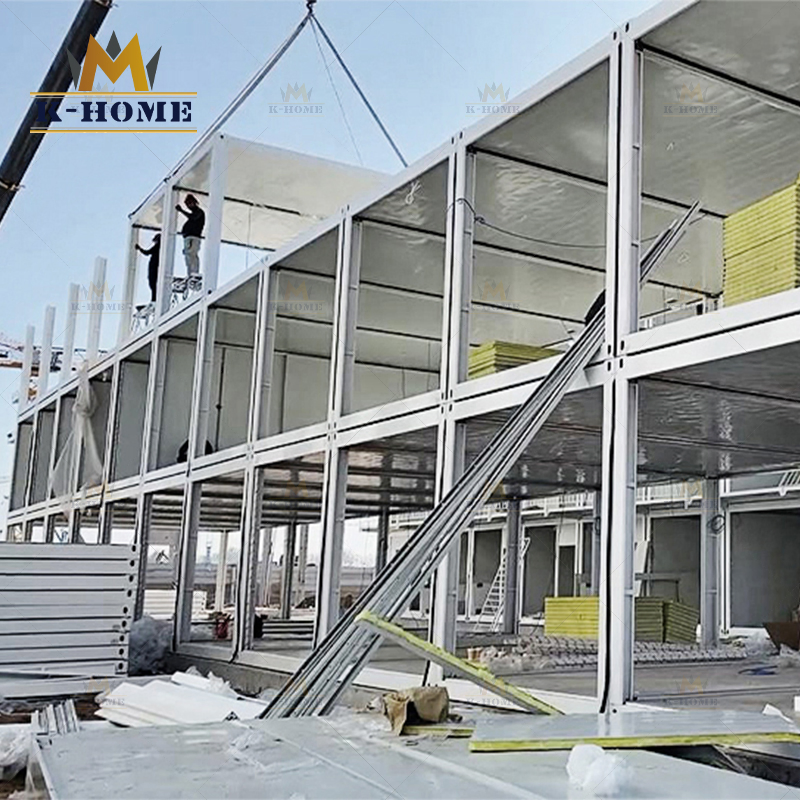

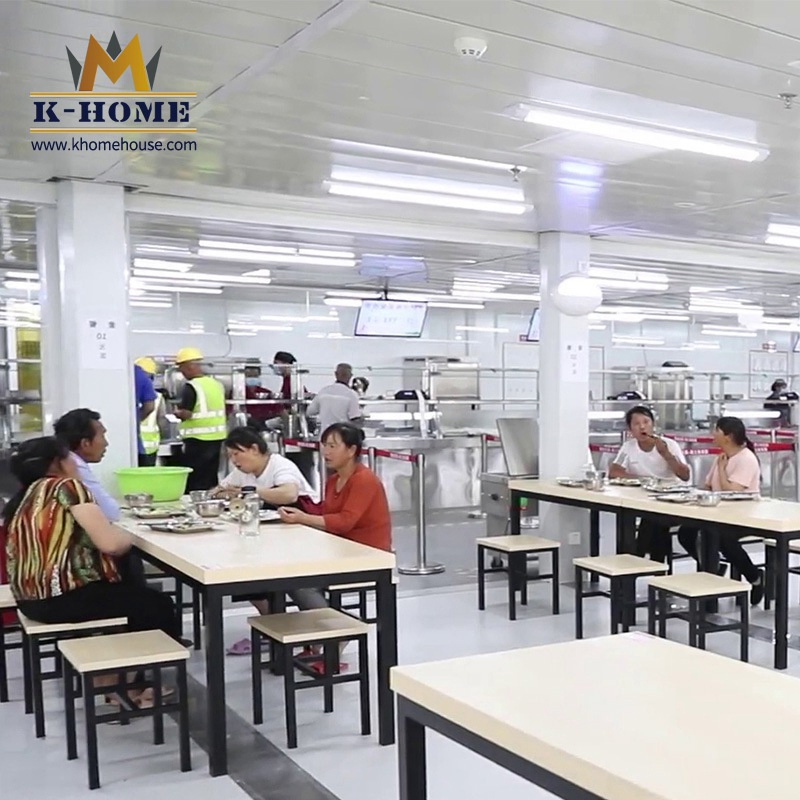

Because the construction site is limited by the site, service life, and budget cost, only the prefabricated houses can be installed. Fast assembly flat pack containers are suitable for construction sites with high-end demand for superimposed products, such as temporary places of project offices, residential buildings, meeting rooms, toilets, overall kitchen, restaurants, etc.

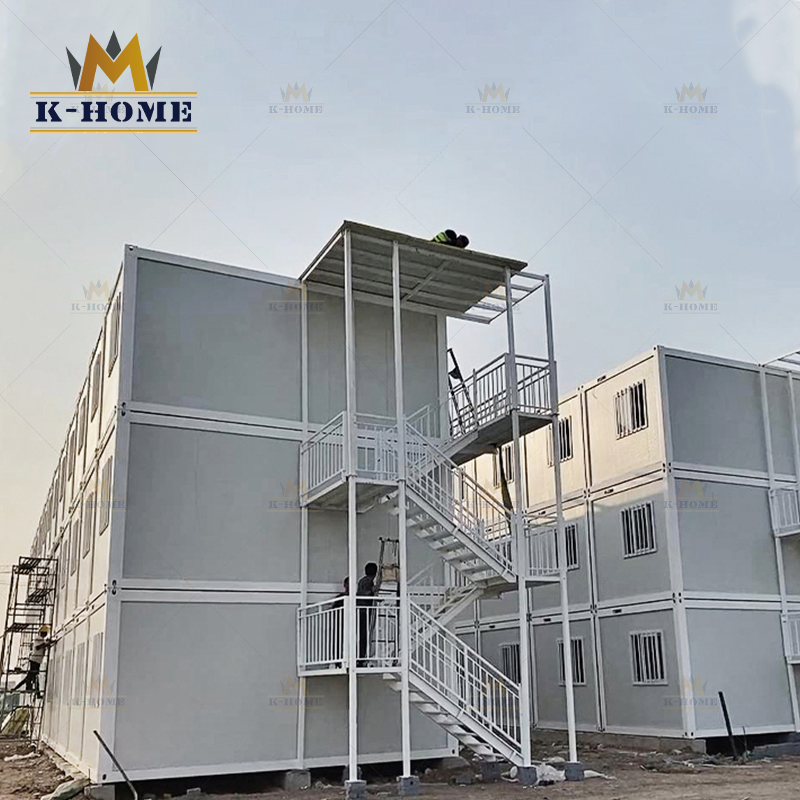

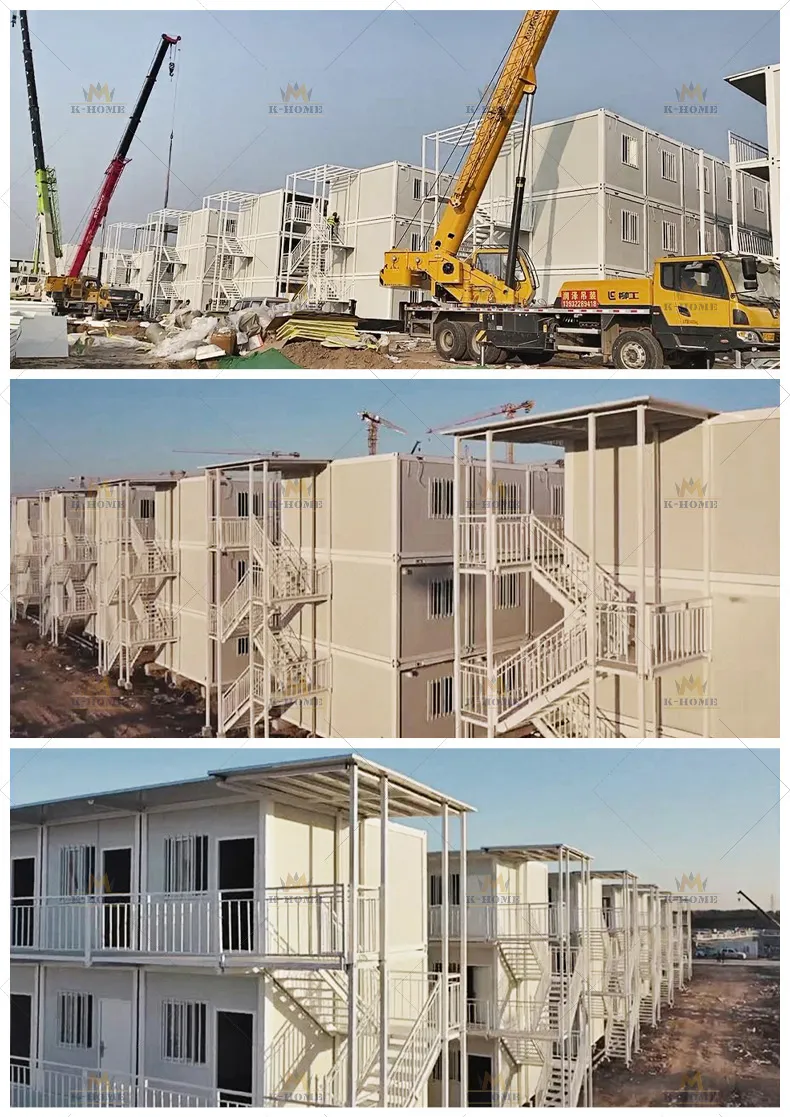

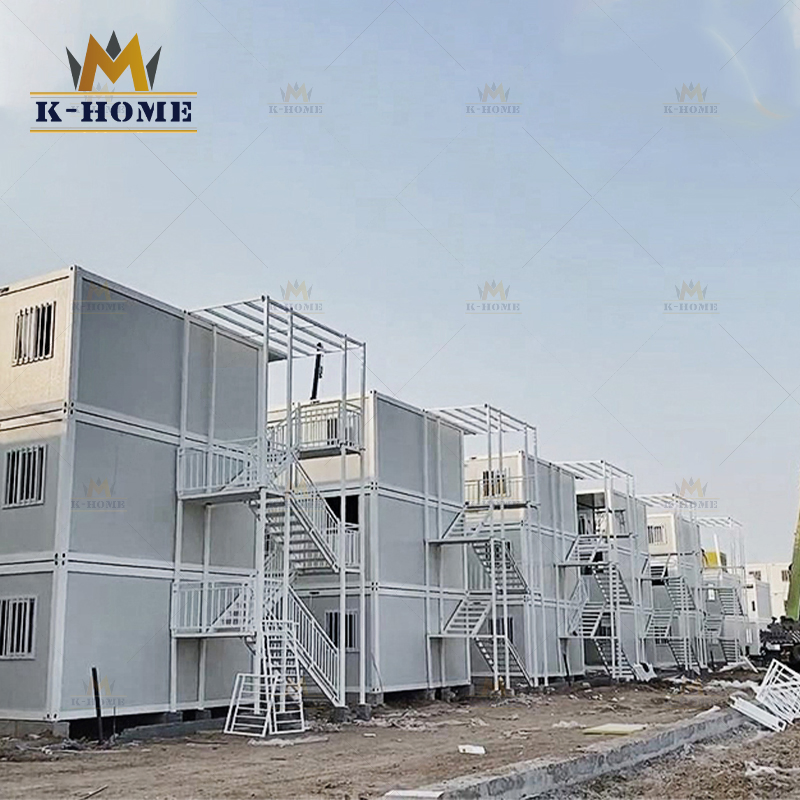

At the same time, this modular container house can also be used for the field survey, mobile office, and dormitory, emergency rooms such as a military command center, other field workers. The whole series of buildings have strong adaptability to the environment and simple installation.

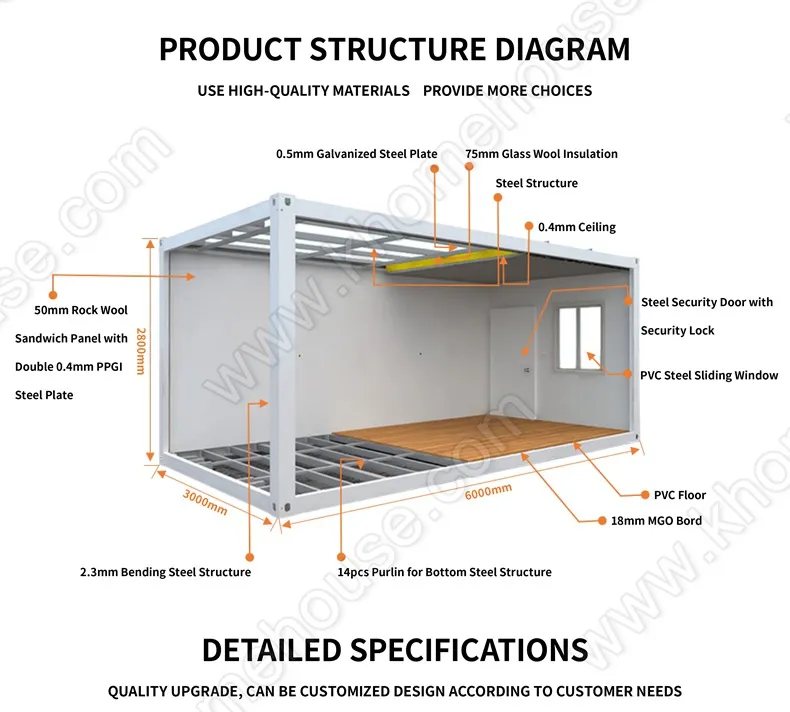

| Part 1: Roof System | ||
| i. | Steel frame | Q235 galvanized fitting |
| ii. | Roof insulation | Ceiling is blue color steel pre-coated 0.4mm outside; 50mm glass wool insulation |
| iii. | Roof ceiling | Shaped steel plate with different pattern |
| Part 2: Floor System | ||
| i. | Steel frame | 3mm Galvanized Steel for main structure + 1.5mm secondary beam |
| ii. | Floor | 15mm chipboard + PVC leather floor |
| Part 3: Column System | ||
| i | Column | 2.5mm Shaped Galvanized Steel |
| Part 4: Sandwich Wall System | ||
| i | Wall Panel | 50mm EPS Foam Sandwich Panel (0.35mm thickness steel) |
| Part 5: Door & Window System | ||
| i. | Door | Steel door; Size: 2000*980mm(H*W) |
| ii. | Window | Aluminum alloy steel double hollow glass sliding window; Size: 1200*1000mm |
| Part 6: Electric System | ||
| i. | Components | LED light, double sockets, air-switches, electrical box with safety protection |
| Part 7: Accessories | ||
| - | Included | Electric wire; sealant; wiring tube; screws and other accessories |
Service Commitment: We provide comprehensive after-sales service and maintenance for all customers.
