Light Steel Structure Modular Prefab Villa House

Customization: Available
Material: Steel Structure, Steel Structure+Sandwich Panel
Length: 22m

Product Description

Basic Specifications

Width
8.9m
Height
3.2m
Steel Structure
2.5mm Thickness
Roof Thickness
50mm
Wall Thickness
100mm
Usage
Villa, Dormitories, Offices
Certification
ISO, CE, SGS
HS Code
9406
Capacity
50,000 M2/Month

Light Steel Structure Modular Prefab Villa

This prefabricated villa is designed for high-quality living and functional modular needs. It is ideal for family houses, holiday homes, and supervisor dormitories. Built with precision engineering, it offers a balance of durability and aesthetic appeal.

  • Easy Construction: Low cost, time-saving, and labor-saving compared to civil buildings.
  • High Resistance: Engineered to resist heavy winds of up to 120km/h and Grade 7 earthquakes.
  • Insulation: Features superior fireproof and heat insulation performance.
  • Durability: Anti-worm and anti-rust treated steel structure with a lifespan exceeding 30 years.
  • Eco-Friendly: Assembled using environmentally friendly materials; can be disassembled and reassembled up to six times.
  • Efficiency: A team of 6 people can install more than 300 m² in a single day.

Main Materials List

Component Specification
Column80 square tube steel
Roof Beam80 square tube steel
Purlin80 "C" section steel
Roof Panel50/75/100mm EPS/Rock Wool/PU sandwich panel
Wall Panel50/75/100mm EPS/Rock Wool/PU concrete panel
WindowAluminum sliding window
DoorSteel door / Aluminum door
Bolt4.8s, Galvanized
CeilingPVC (Dry areas) / Aluminum (Wet areas)
FloorConcrete foundation with ceramic or PVC tile

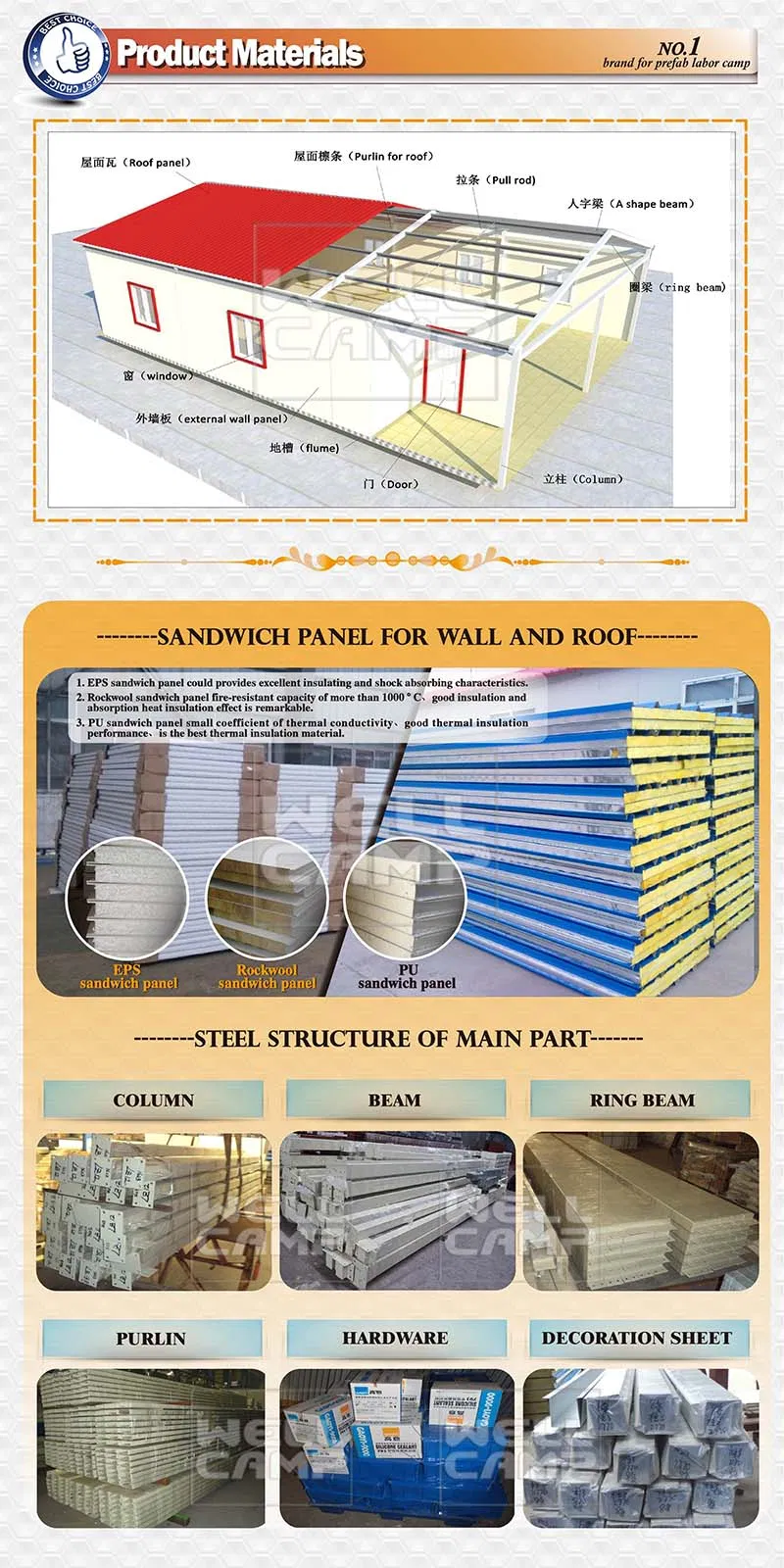

Prefab Villa Structure
Design Advantages

Technical Parameters

Wind ResistanceGrade 11 (≤120 km/h)
Earthquake ResistanceGrade 7
Snow Load (Roof)0.6 kn/m²
Live Load (Roof)0.6 kn/m²
Heat Transmission0.35 kcal/m²hc
Wall Permitted Loading0.6 kn/m²
100mm Concrete Panel Density75kg/m²
Delivery TimeNormally 20-25 days

Project Gallery & Company Overview

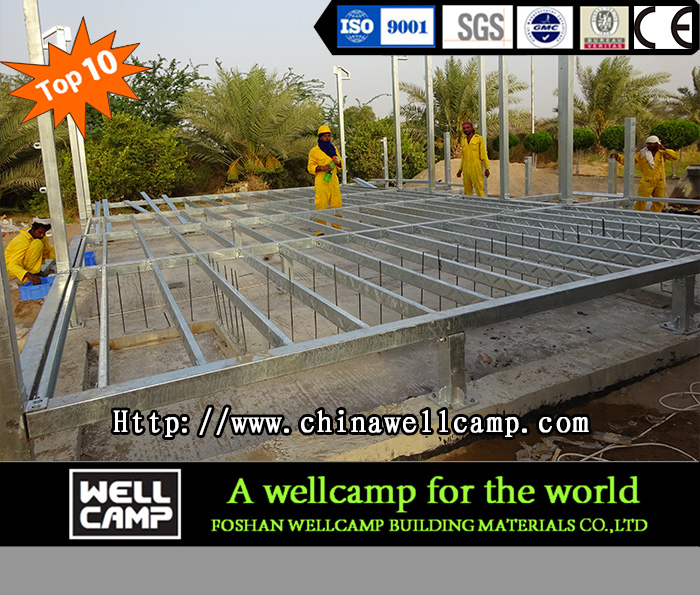

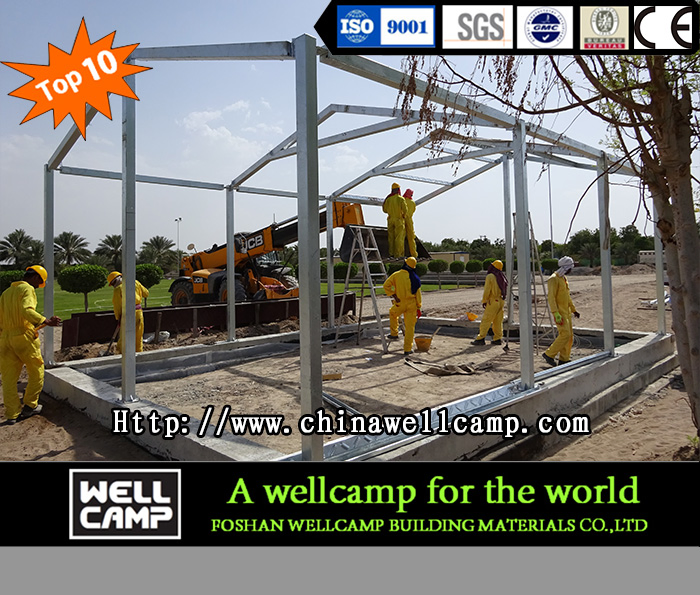

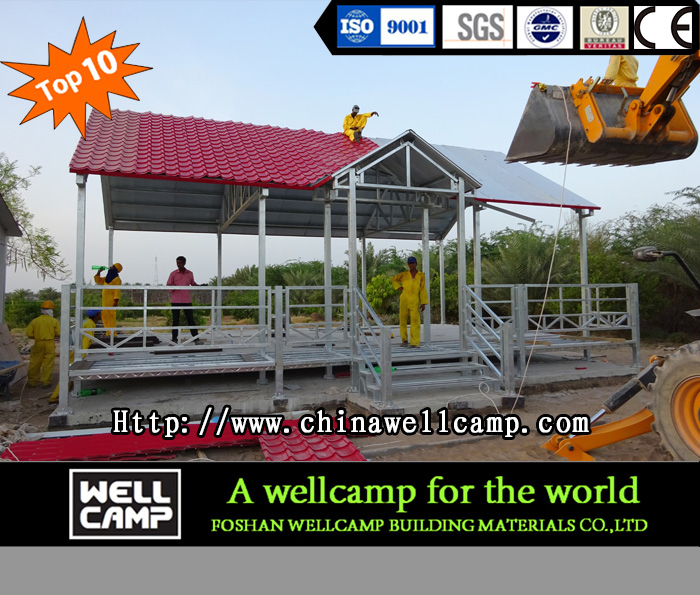

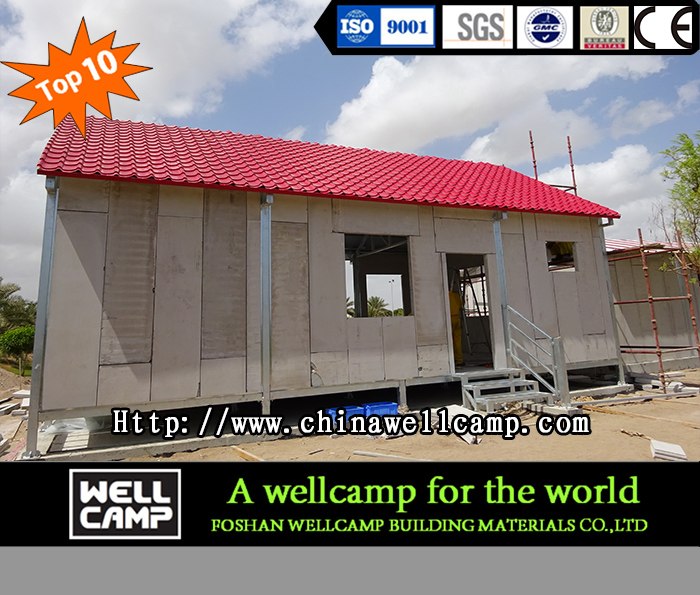

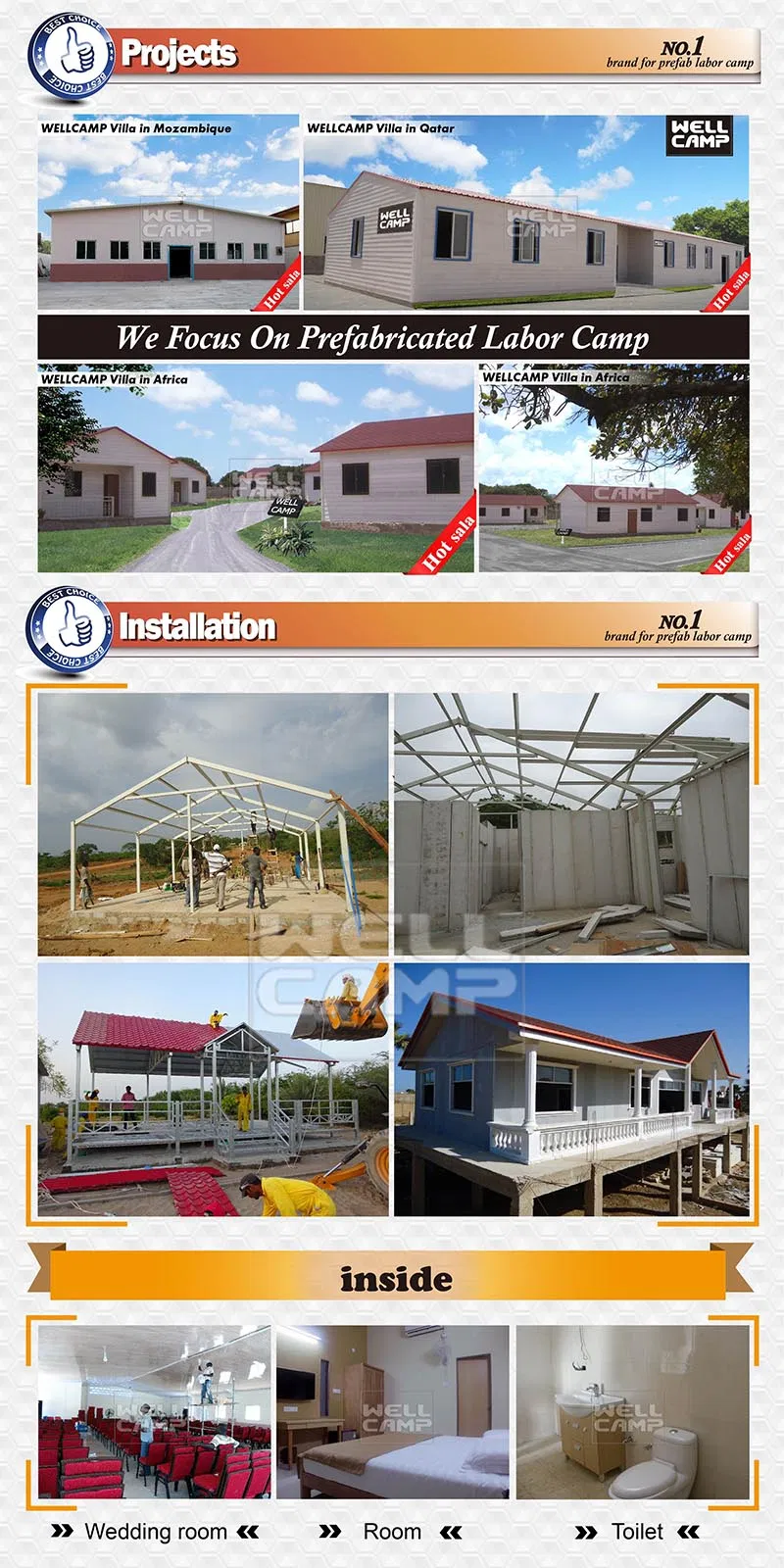

Installation Process

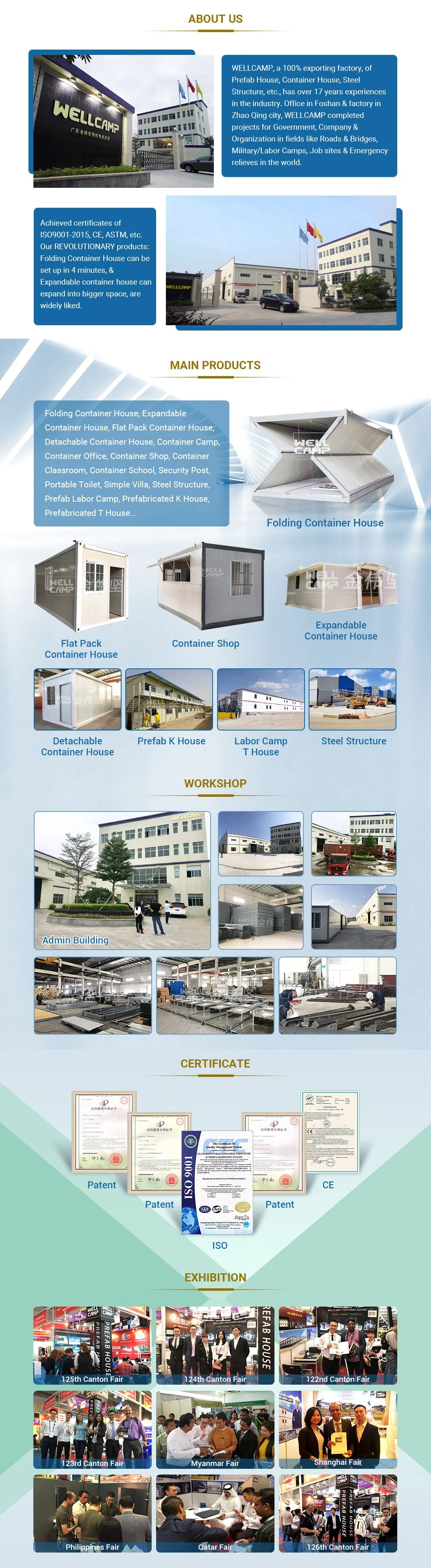

Catalog Page 1 Catalog Page 2

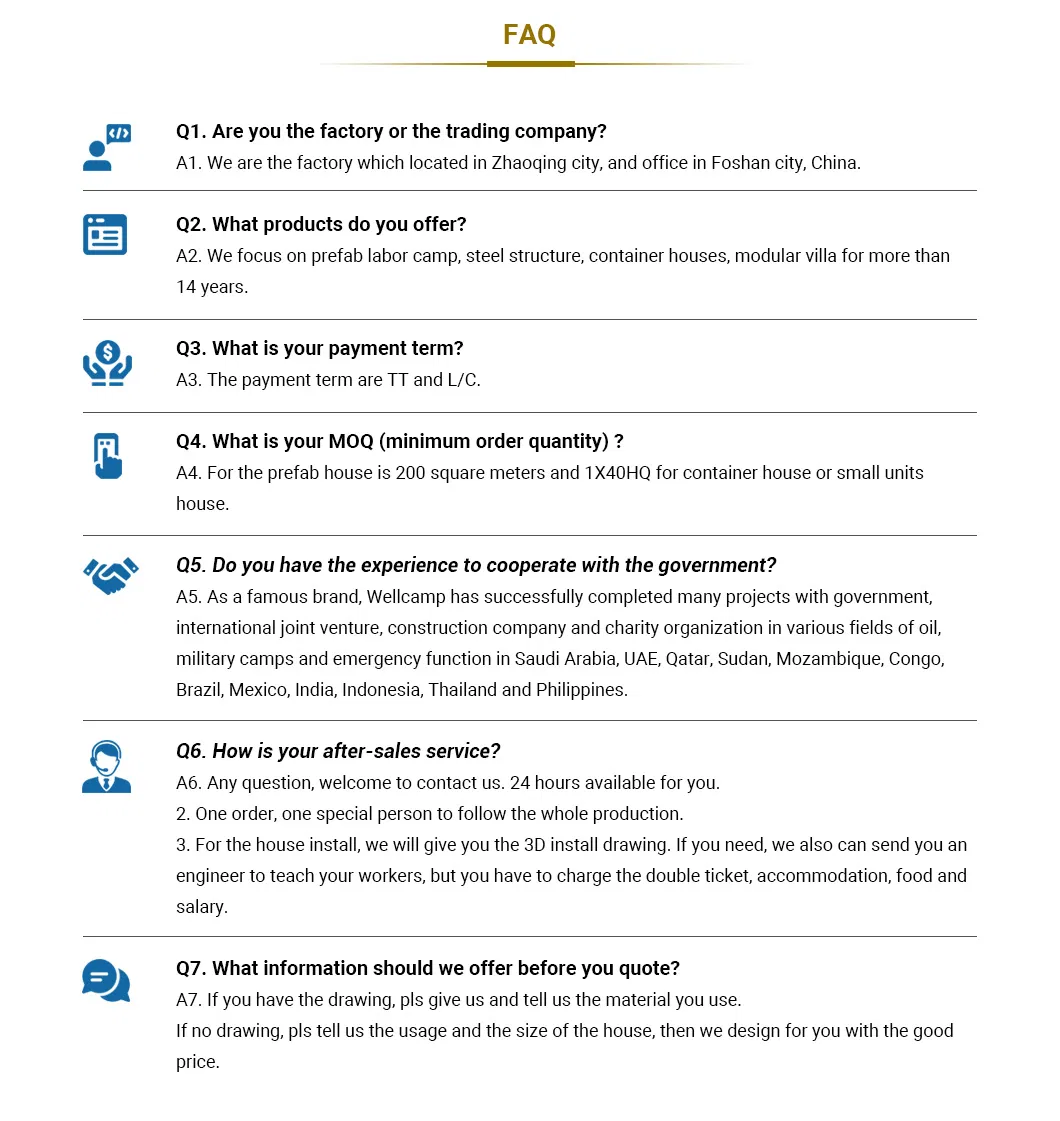

Global Presence

Frequently Asked Questions

How long does the prefabricated villa last?
The steel structure is treated with anti-rust painting and high-quality materials, allowing for a service life of more than 30 years under normal maintenance.
Can the house withstand extreme weather conditions?
Yes, the modular structure is engineered to resist Grade 11 winds (up to 120km/h) and Grade 7 earthquake intensity.
What are the main insulation options?
We offer EPS, Rock Wool, and PU sandwich panels for both roofing and walls to ensure excellent thermal and fireproof performance.
Is it easy to install the villa on-site?
Extremely. A professional team of 6 people can typically install over 300 square meters of the structure in a single day.
Is the building portable or relocatable?
Yes, the modular design allows the structure to be assembled and disassembled up to six times without generating building waste.
What is the typical delivery timeframe?
The standard production and delivery cycle is approximately 20 to 25 days after design confirmation.
