| Model NO. | EC-A | Name | Modular Prefabricated House |
| Material | Sandwich Panel | Wall Thickness | 75mm |
| Frame | Galvanized Steel Structure | Installation | Quick/Fast Installation |
| Flooring | MGO / Spc Floor | Window/Door | Double Tempered Glass / Steel Door |
| Features | Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof, Wind Resistance | ||

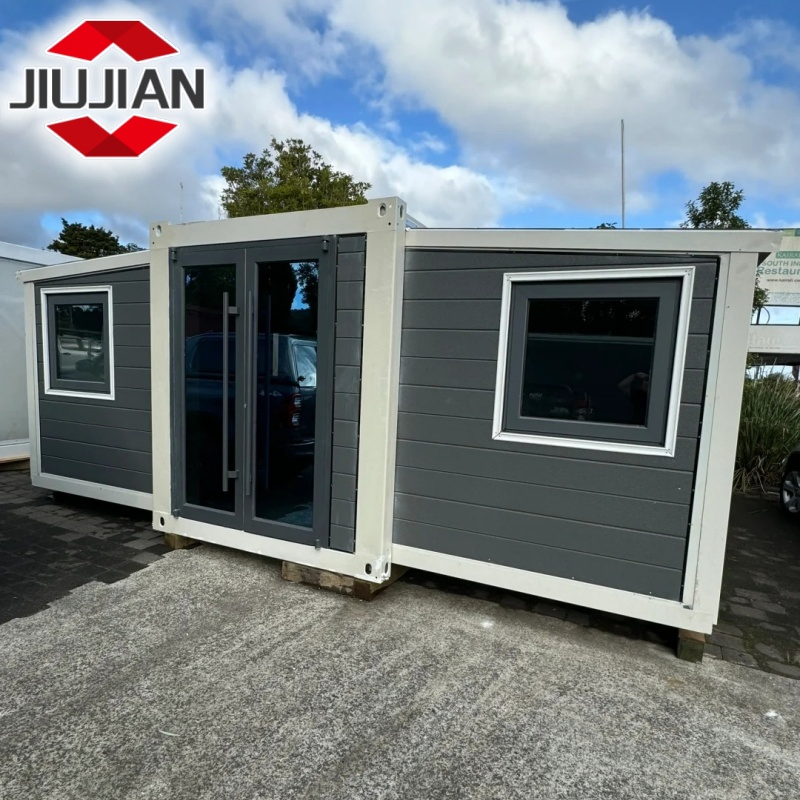

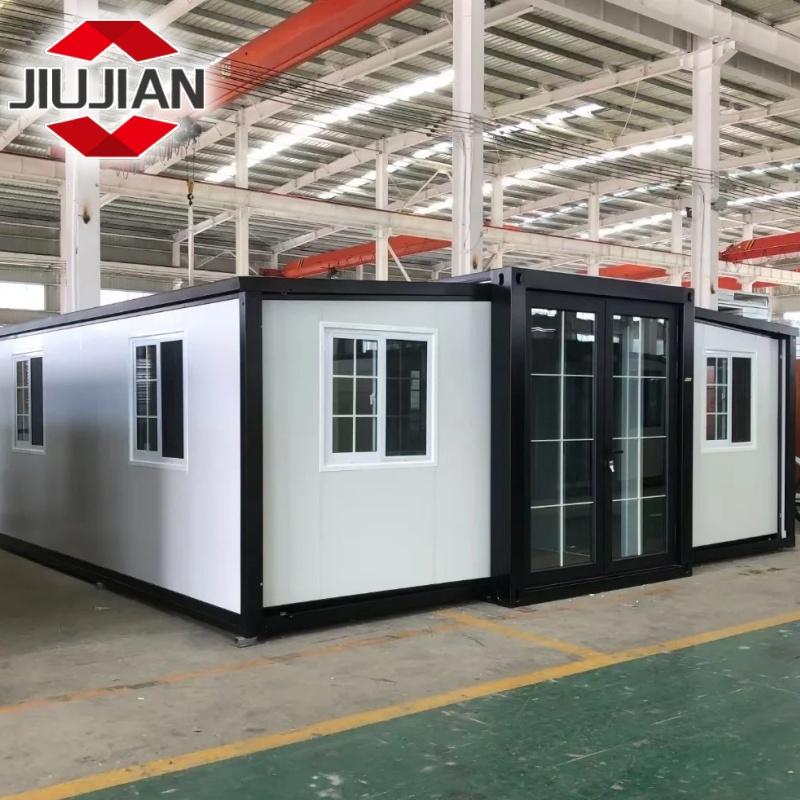

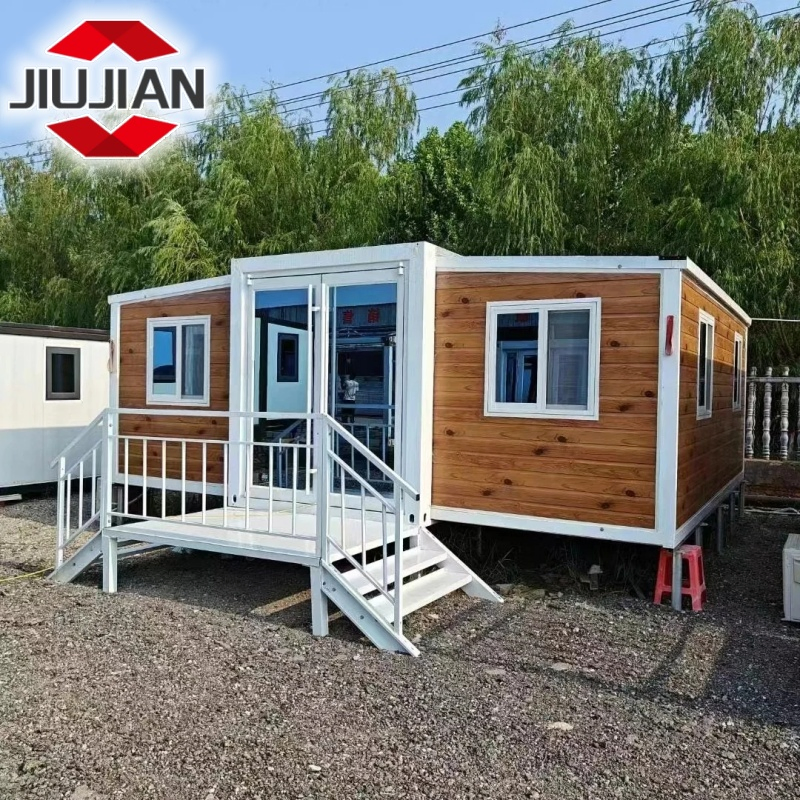

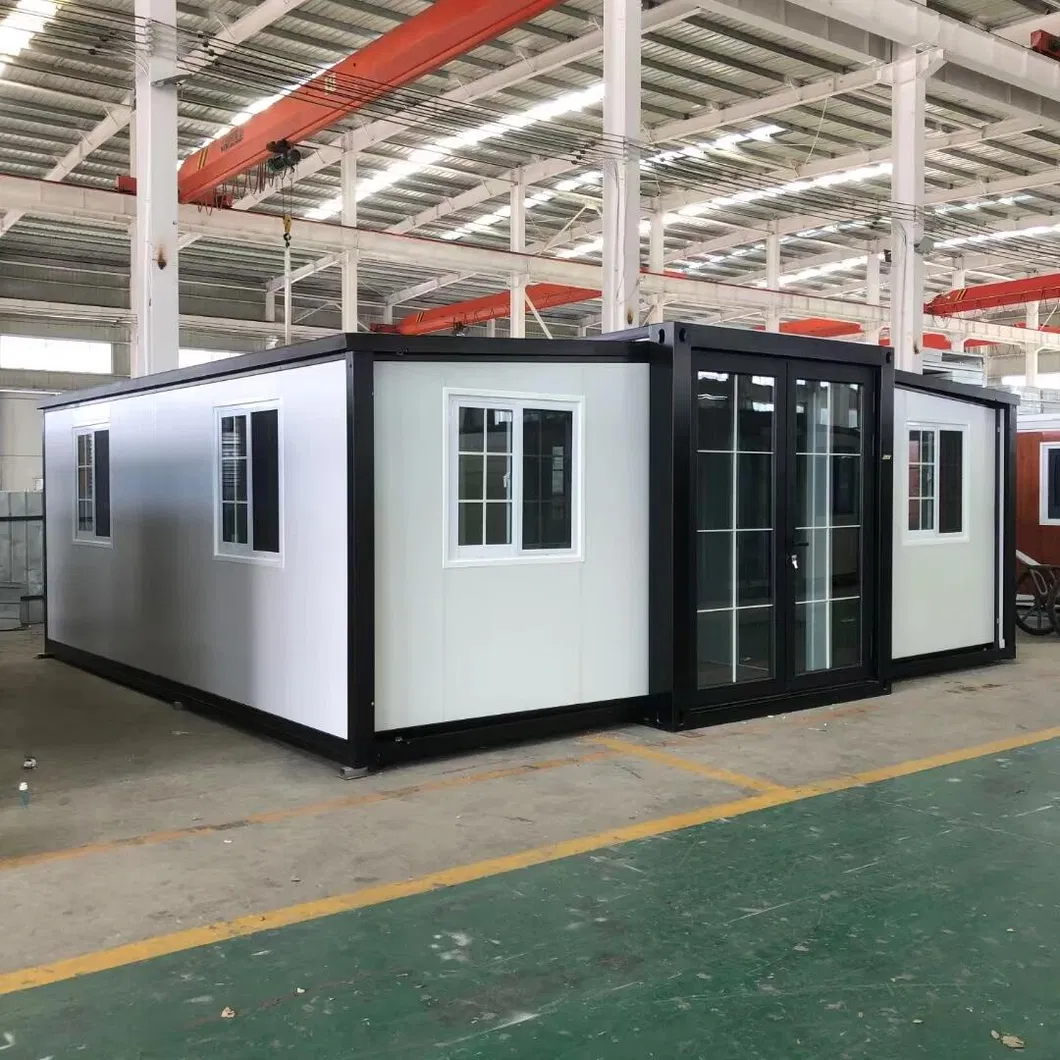

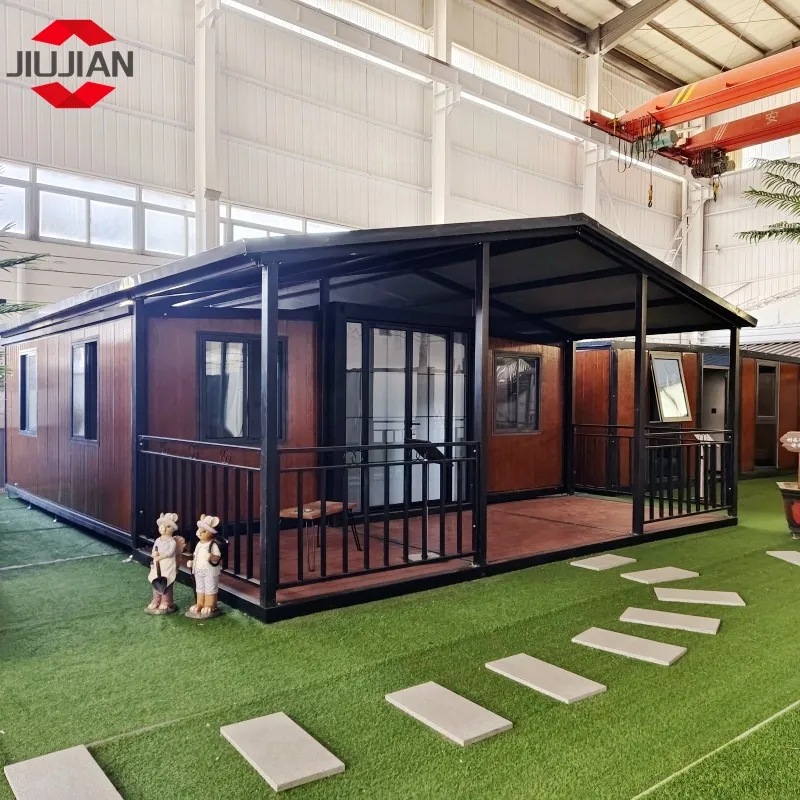

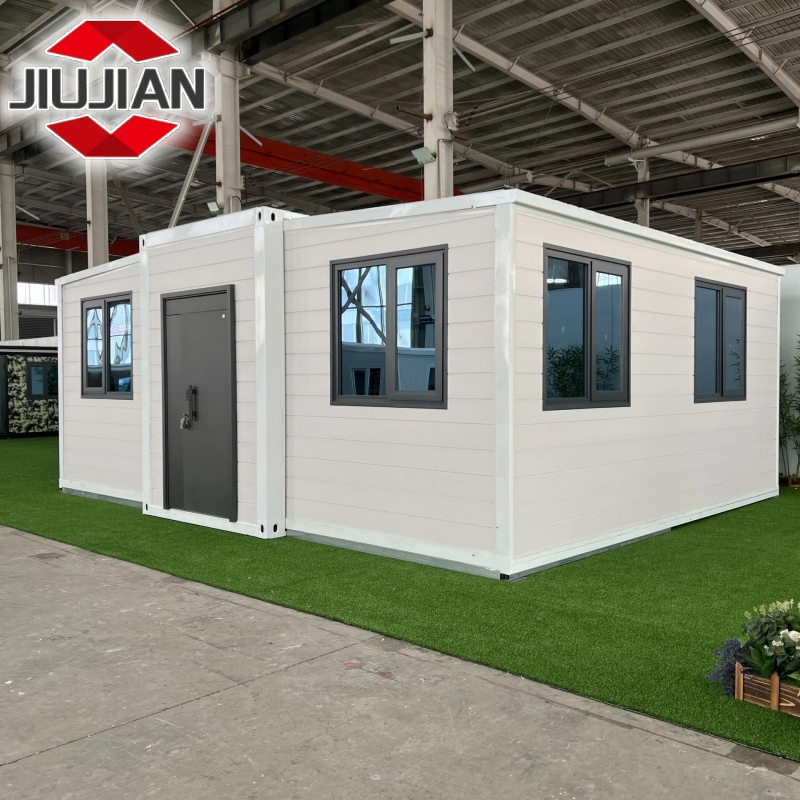

The expandable container house is a distinctive and innovative product. Its expanded design increases the available space inside the house, creating a larger living space. It is quick and easy to assemble and disassemble, making it ideal for use in a variety of settings. Whether it is outdoor adventure, camping or home emergency rescue, the expandable folding container house provides convenient living solutions.

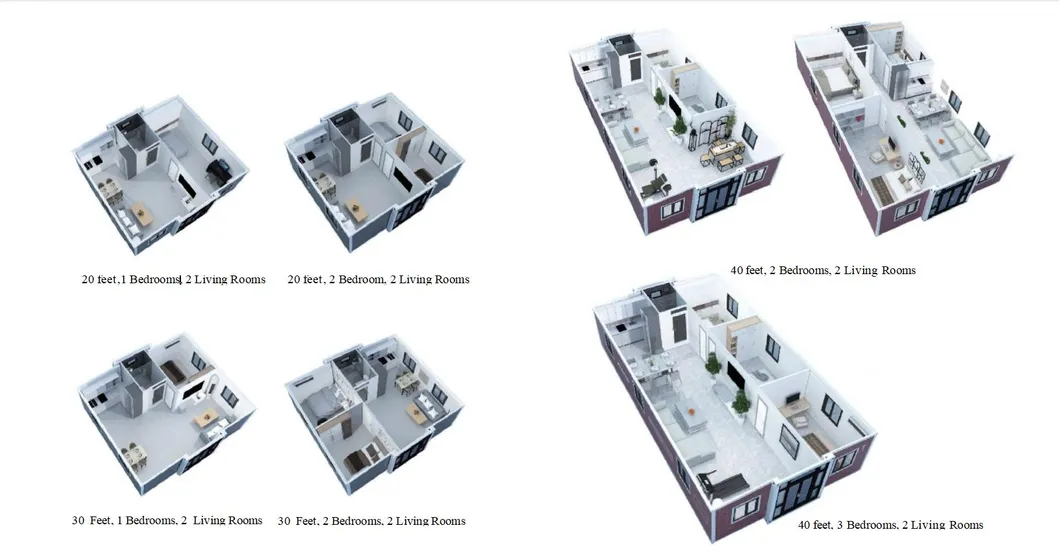

| Model | Expanded Size | Folded Size | Floor Area | Weight |
|---|---|---|---|---|
| 10 Feet | L2950*W6300*H2480 | L2950*W2200*H2480 | 18.5m² | 1.6 Tons |
| Mini 20 Feet | L5900*W4800*H2480 | L5900*W700*H2480 | 27.5m² | 1.95 Tons |
| 20 Feet | L5900*W6300*H2480 | L5900*W2200*H2480 | 37m² | 2.8 Tons |
| 30 Feet | L9000*W6220*H2480 | L9000*W2200*H2480 | 56m² | 3.75 Tons |
| 40 Feet | L11800*W6220*H2480 | L11800*W2200*H2480 | 72m² | 4.6 Tons |

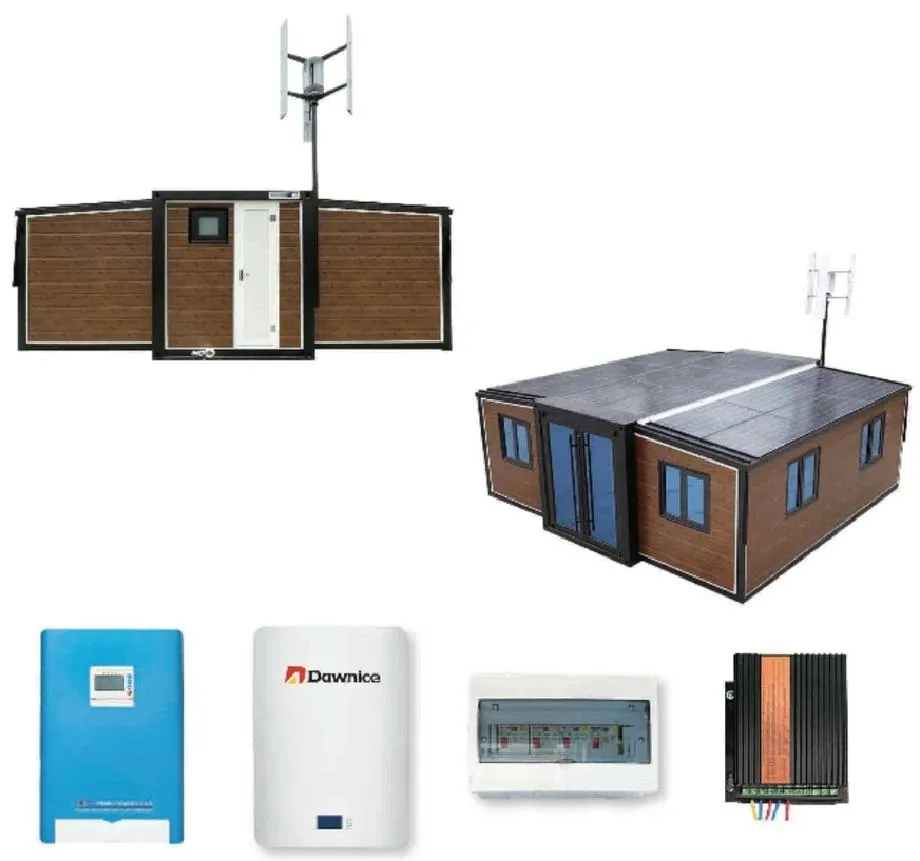

Energy System: The new energy generation system combines wind and solar energy with battery storage, providing a reliable source of power for daily household appliances and storing excess energy for night-time use.
| Component | Specifications |
| Main Frame | 80*100*2.5mm Square tube, fully galvanized |
| Wallboard | T65mm EPS color steel plate (Side/Front/Rear) |
| Roofing | T50mm EPS color steel plate + corrugated veneer |
| Ground | 18mm fireproof cement fiber floor / Bamboo plywood |
| Doors & Windows | Plastic steel sliding windows (920*920mm); Steel single door (840*2030mm) |
| Electrical System | 32A leakage protector, 220V/50HZ, LED ceiling lamps, international sockets |

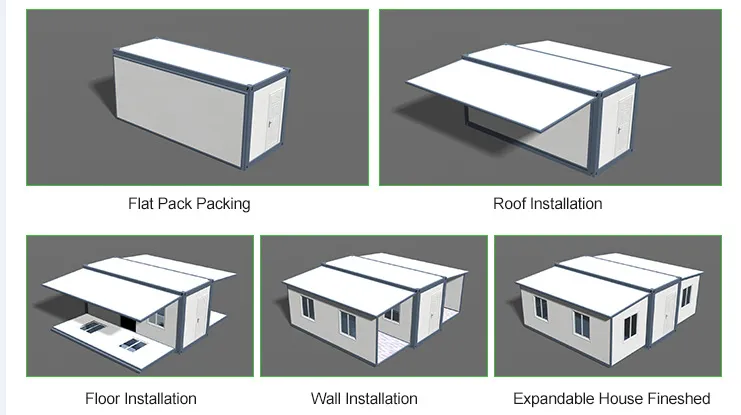

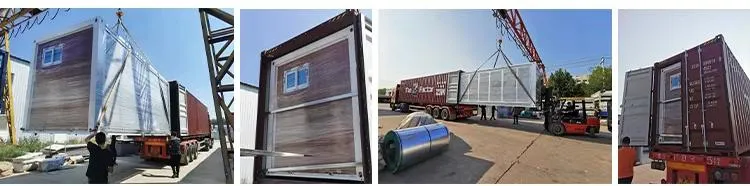

5 inexperienced workers can complete the expansion in 40 minutes. Extremely fast and easy to remove or relocate via tractor hoisting.
Prefabricated in the factory to minimize construction waste and resource loss, promoting sustainable environmental protection.
Structural design using high-quality materials ensures a safe service life of over 15-20 years with proper maintenance.
Significantly lower cost than traditional buildings with the added benefit of high resale or recycling value.

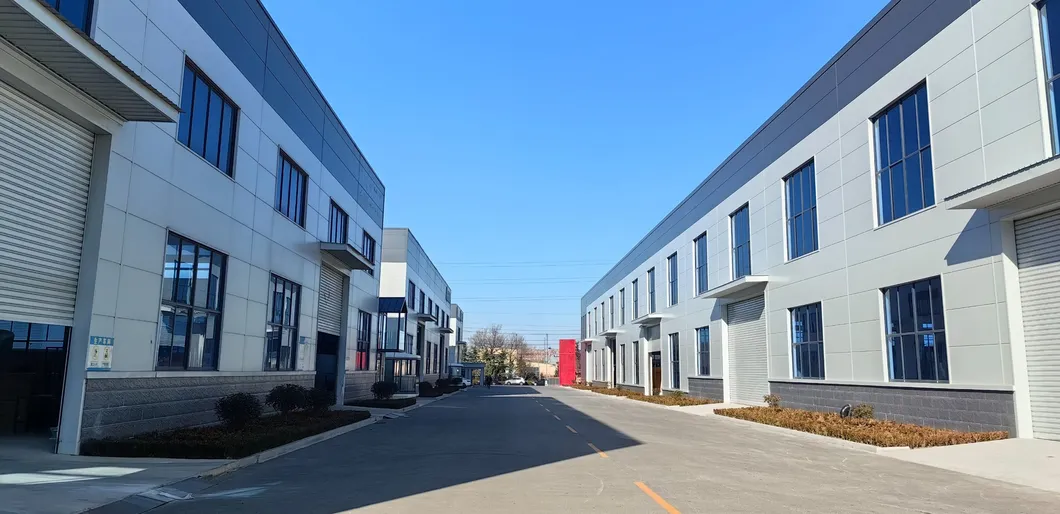

Specializing in providing container houses for construction companies, real estate developers, mining fields, and energy infrastructure since 2003. We produce various prefabricated solutions including expandable houses, folding houses, and flat pack containers. With advanced production equipment and a rigorous quality inspection system, our products are used across 60 countries including Europe, America, and Australia.
