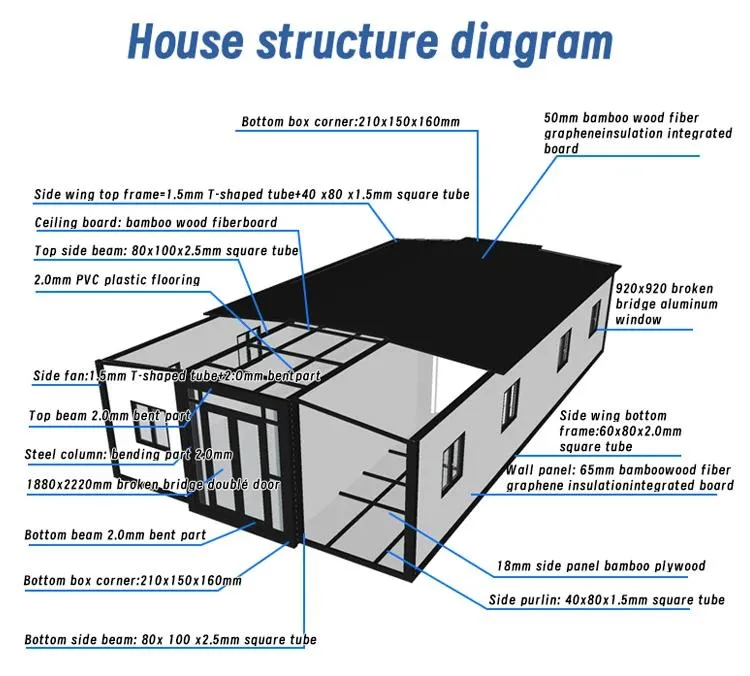

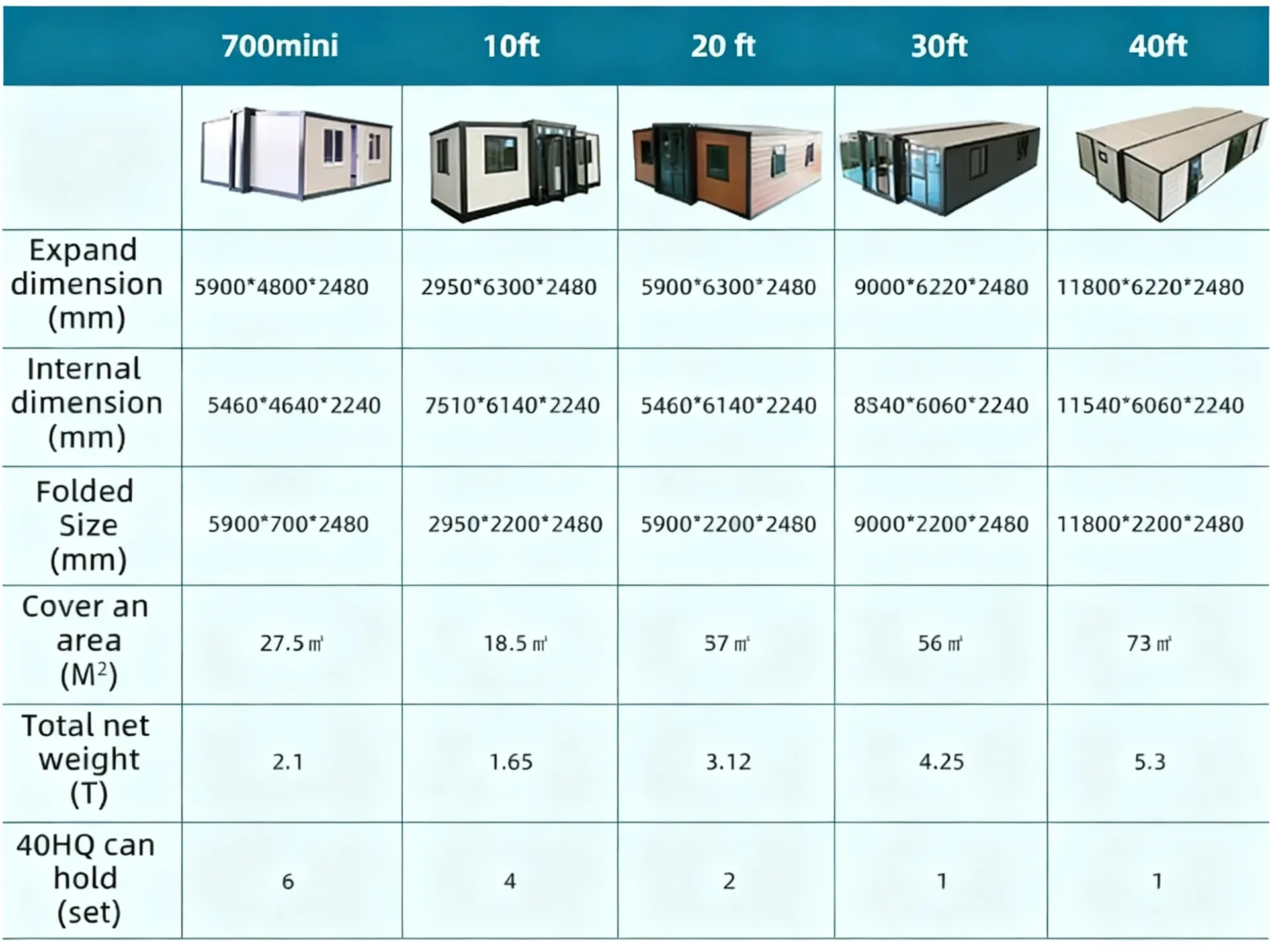

| Expandable Container House Specifications | ||
|---|---|---|
| Framework | Main Beam | Galvanized square tube 80*100*2.5MM Q235 |
| Integrated Column Head | Galvanized folding piece 150*210*2.0MM Q235 | |
| Sub-frame | Galvanized square tube 40*60*1.0MM Q235 | |
| Hinges | Galvanized thickened hinge Q235 | |
| Frame Color | Painting process White frame | |
| Floor | Middle & Sides | 18mm glass magnesium board (asbestos-free) |
| Floor Leather | Palm wood finish | |
| Insulated Wall | 70mm/50mm sandwich panel (EPS insulation) | |
| Electrical | System Parameters | Standardized wires (6² incoming, 4² AC, 2.5² sockets), LED ceiling lights, Circuit breaker system. |

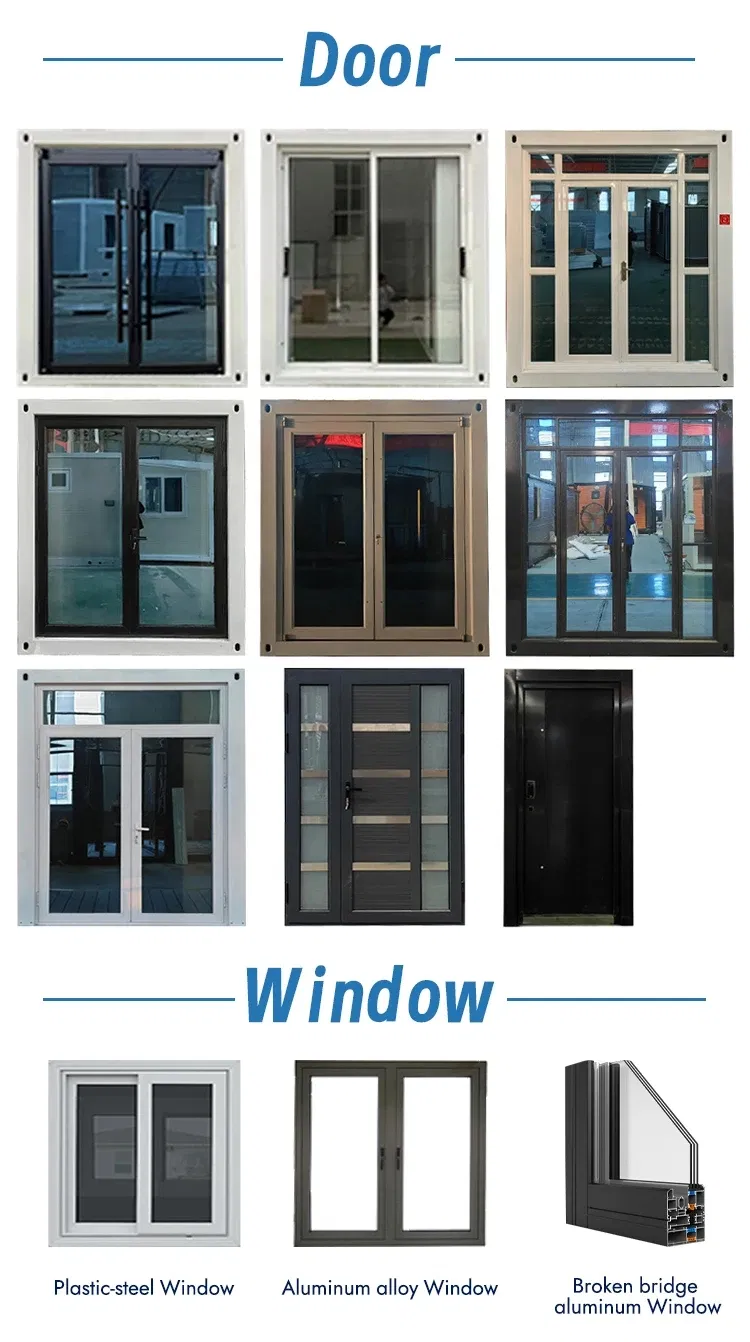

| Doors & Windows | Entrance Door | Thermally-insulated aluminum doors, double-glazed tempered glass (W1890*H2230) |
| Windows | Aluminum alloy sliding windows with diamond mesh (920*920*6 pieces) | |

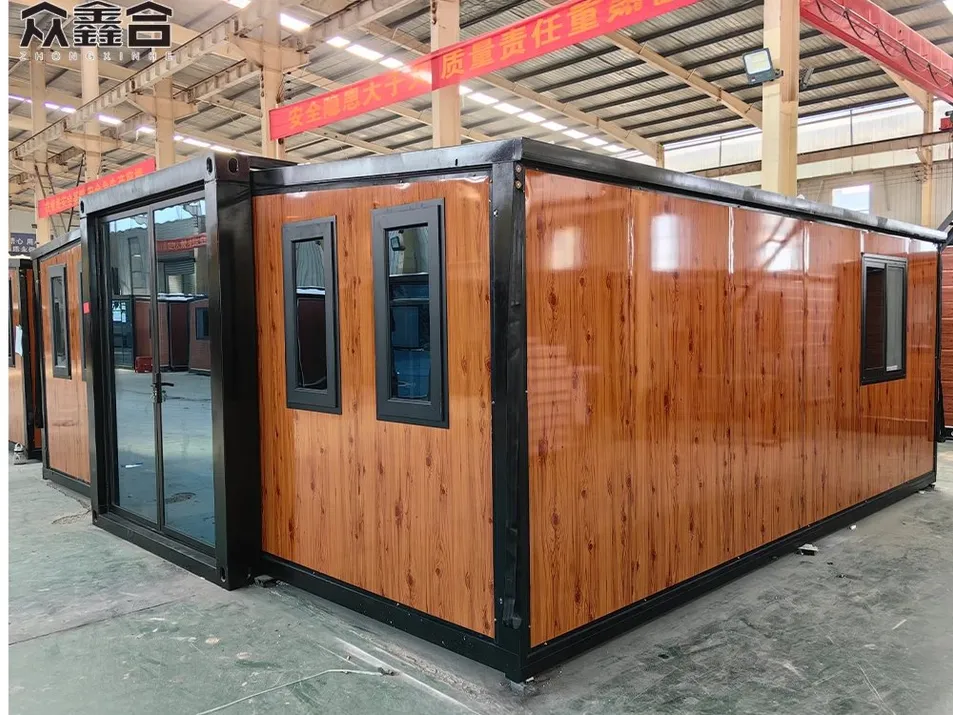

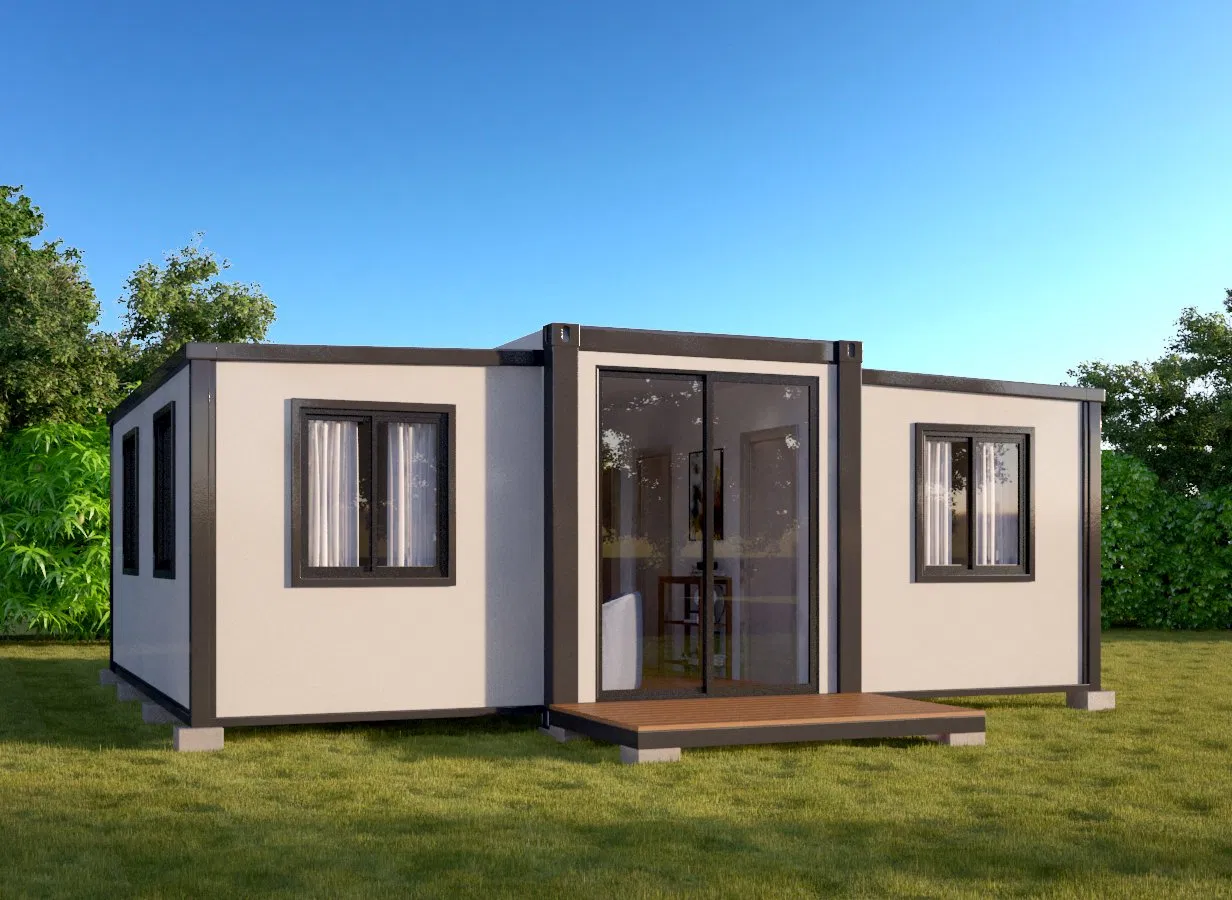

"Flat-base + flat-top" combines practicality with innovation, offering stability, functionality, and sustainability.

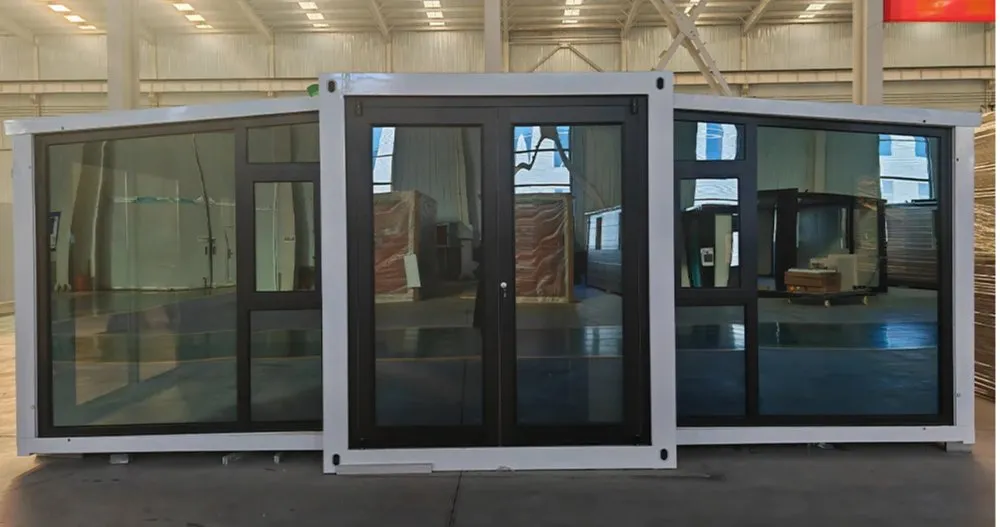

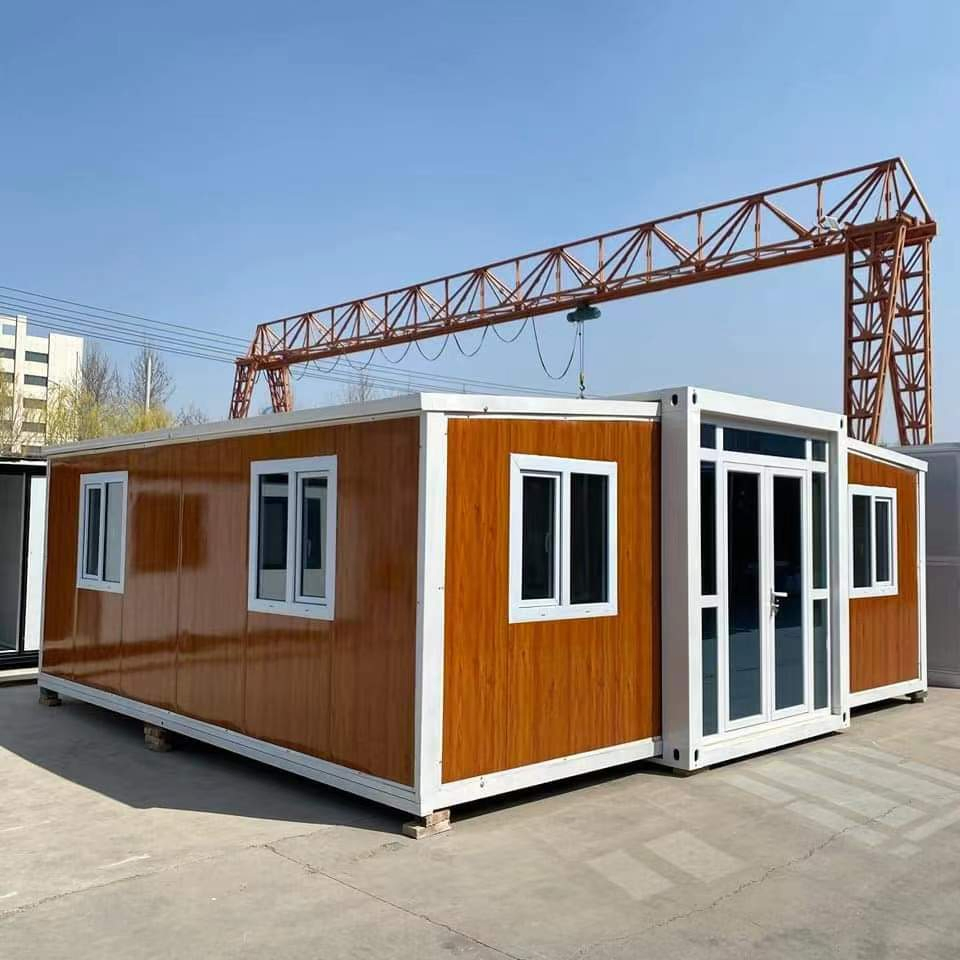

The double-wing expandable house serves as an ideal exhibition space for product launches and events, capturing audience attention with its novel design.
Standardized structure fits container transport tools, reducing logistics costs. Factory prefabrication allows for quick on-site assembly, minimizing labor and time.
Crafted from recyclable steel and environmentally sustainable panels. These materials offer excellent durability while being gentle on the environment.
Modular assembly enables rapid creation of multi-story or large-area spaces. Ideal for residences, pop-up stores, and emergency facilities.
Perfect for Tourism & Vacation. Quickly deployed in picturesque locations to provide a distinctive and cozy accommodation environment.
