Quick Build Luxury Building Modular/Container/ Prefabricated Steel Structure Building Villa

1 / 5

Quick Build Luxury Building Modular/Container/ Prefabricated Steel Structure Building Villa

Customization:	Available
After-sales Service:	Installation Manual
Material:	Sandwich Panel

Send Inquiry

Product Description

Basic Info

Model NO.

Customized

Frame

3mm Steel Painting with Guarantee 20 Years

Dimension

6055*2990*2896mm or Customized

Design Parameters

20 Years, 8 degrees of Seismic

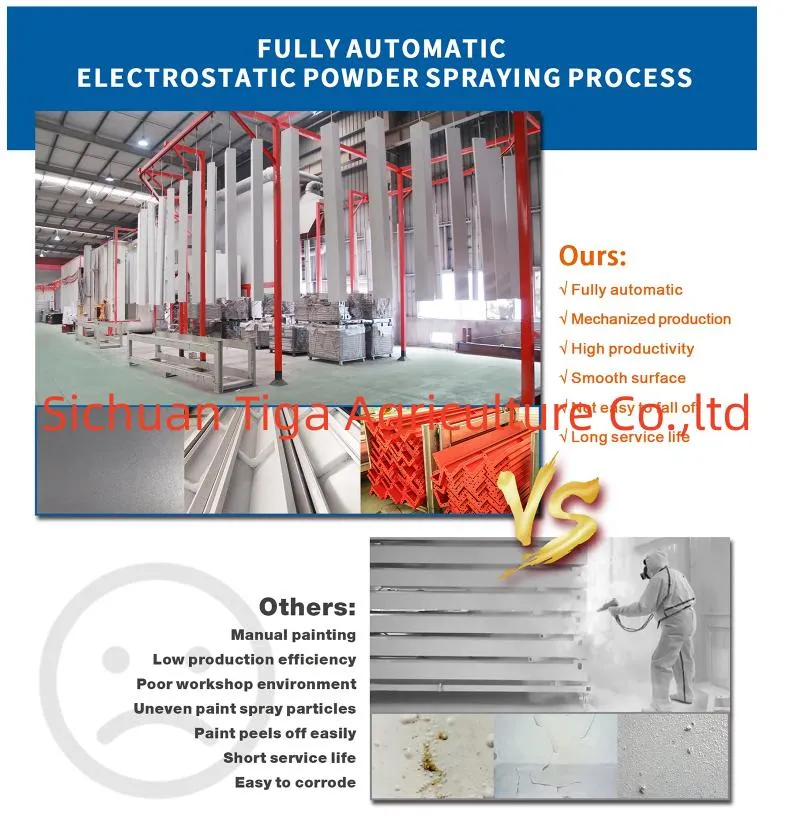

Paint

Graphene Powder 110-160um

Wall and Roof

75mm Glass Wool Sandwich Panels

Floor

1.6mm PVC Rubber + 18mm Cement Fiber Board

Door

850*2035mm Steel Door

Window

1120*1100mm Plastic Steel Frame + 5mm Glass

Electric Wire

3 of 5 Holes Socket and One AC Socket

Water

Well Layouted with PPR and UPVC Pipes

Floors

1-3 Floors

Shipment

6 Units Per 40hq Container

Usage

Warehouse, Villa, Dormitories, Offices, Workshop

Certification

ISO, CE

Production Capacity

10000 Units/ Month

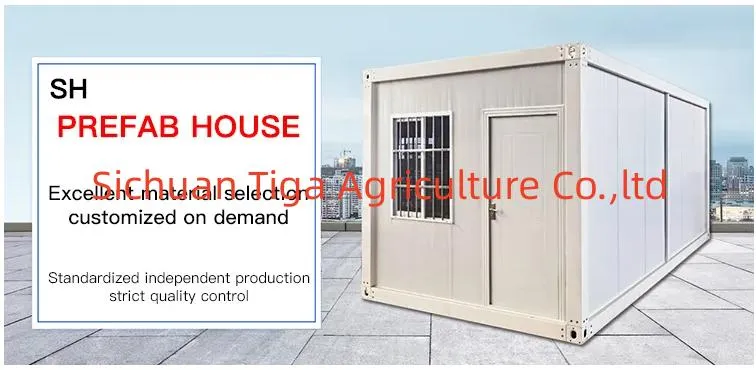

1. Container house brief introduction

Container house is designed and developed according to the standard size of shipping container. Transportation is designed in accordance with a standard ISO shipping container. The corner casting structure enables lifting capability utilizing a crane in the same manner as a standard ISO shipping container.

2. Container house characteristics

Good ability to assemble and disassemble for several times without damage.

Could be lifted, fixed and combined freely.

Heatproof and waterproof.

Cost saving and convenient transportation (Each 4 container house can be loaded in one standard container).

Service life can reach up to 10 - 15 years.

We can provide the service of installation, supervision and training by extra.

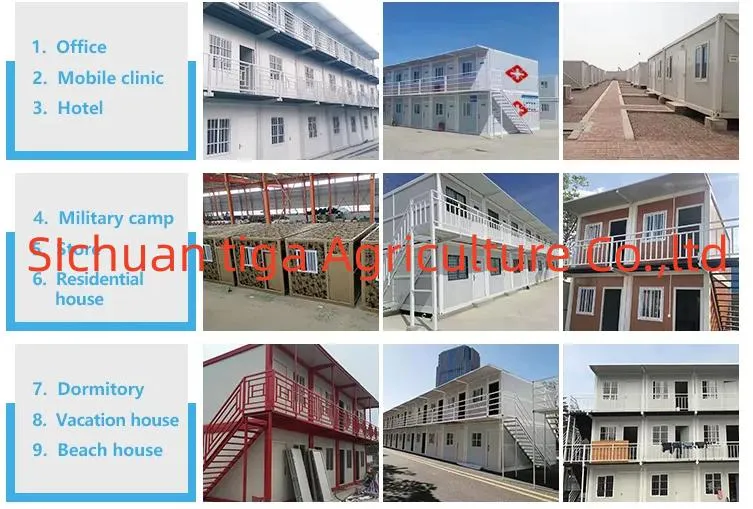

3. Container house usage

It is of heatproof and waterproof. It is widely used as site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room and so on. Light material without overload, easy to pack and transport. The house can be assembled and disassembled more than 6 times, and the service life is about 10-15 years.

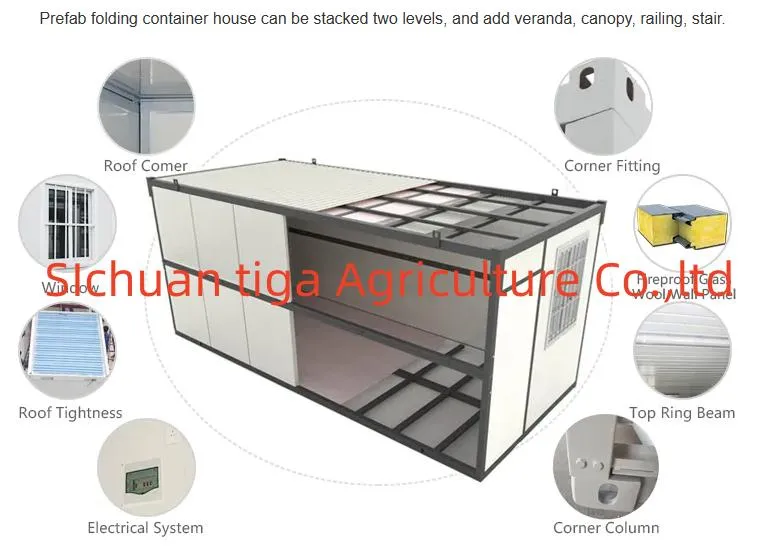

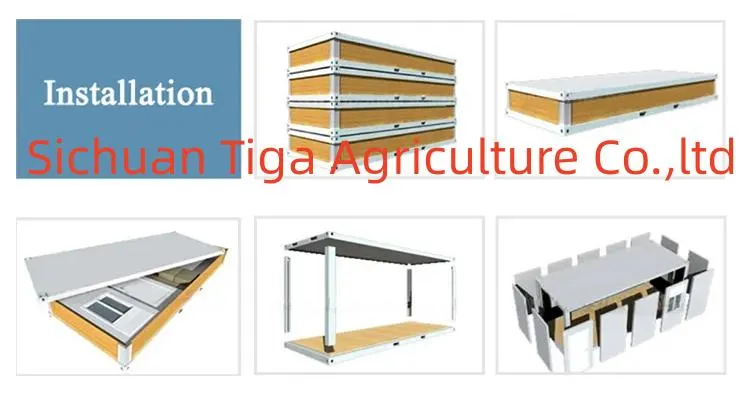

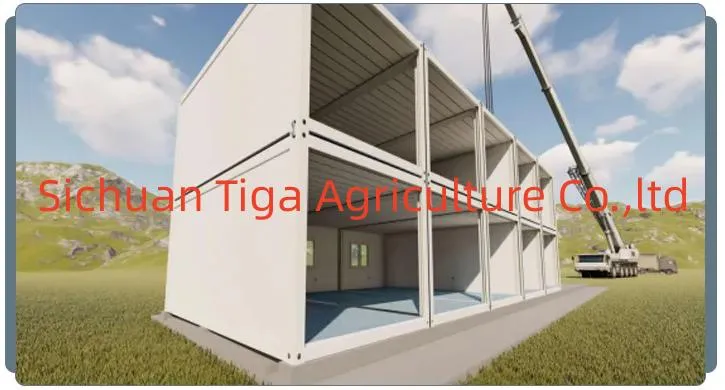

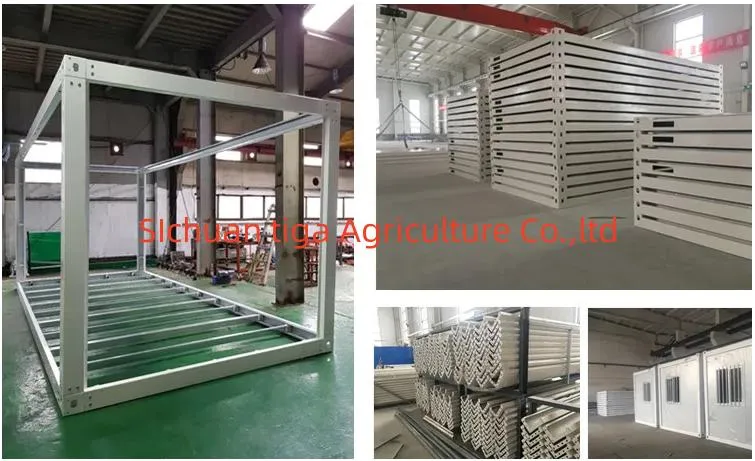

4. Container house main structure and installation

Flat Pack Container is 6.055m*2.435m*2.896m, with EPS/IEPS/Rock wool sandwich panel for wall & Glass wool for roof! 6 workers can install 1 unit in 2 hours! Can stack up to 3 floors! Electric wires runs over ceiling, including DB, breaker, power inlet & lights. Sockets & Switch included. Total-sealed-top & corner-draining system ensures no water leaking on roof top. Fully Welded Top frame + truss & Bottom frame + supports ensure product strength!

Technical Parameters & Specifications

Accessory	System	Details
Main Components	Roof System	Q345B steel structure + 0.45mm steel sheets + 70mm PU foaming integrated formed roof + Wiring + Sockets
	Chassis System	Steel structure chassis + 18mm cement-fiber board + 2mm PVC floor sheet
	Wall System	50/75/100mm EPS/Rock wool/Glass fiber/PU sandwich panel
	Door System	Steel door / Fire-proof door / Sandwich panel door
	Window System	Aluminum alloy shutter or plastic-steel window, single/double glass
	Floor System	PVC, plywood or customized
	Permitted Loading	>2.5KN/m2
Technical Index	Resistant Temp	-40ºC to 40ºC
	Wind Resistance	210km/h
	Earthquake Resistance	Grade 8

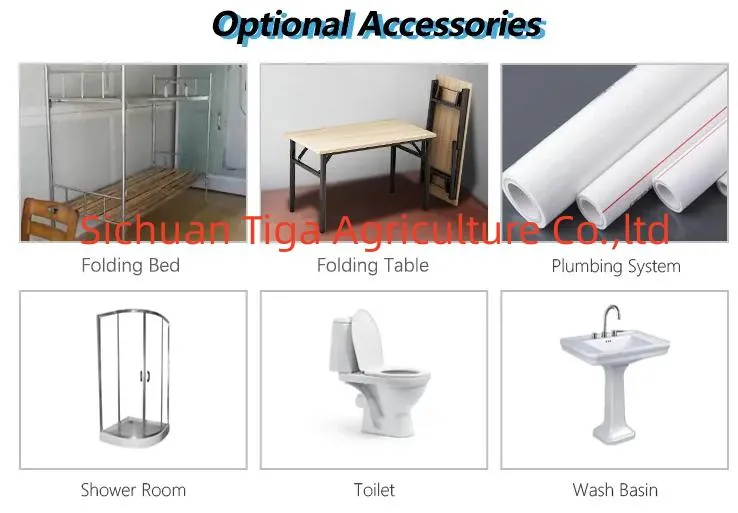

Customized Services

We offer professional customized services. You can choose colors, models, and designs based on your specific requirements.

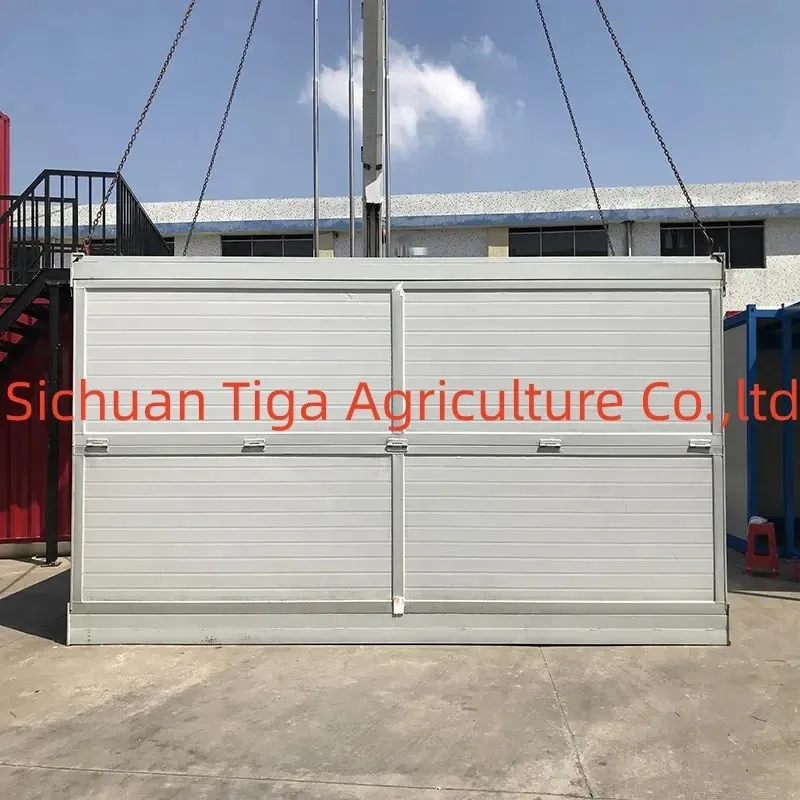

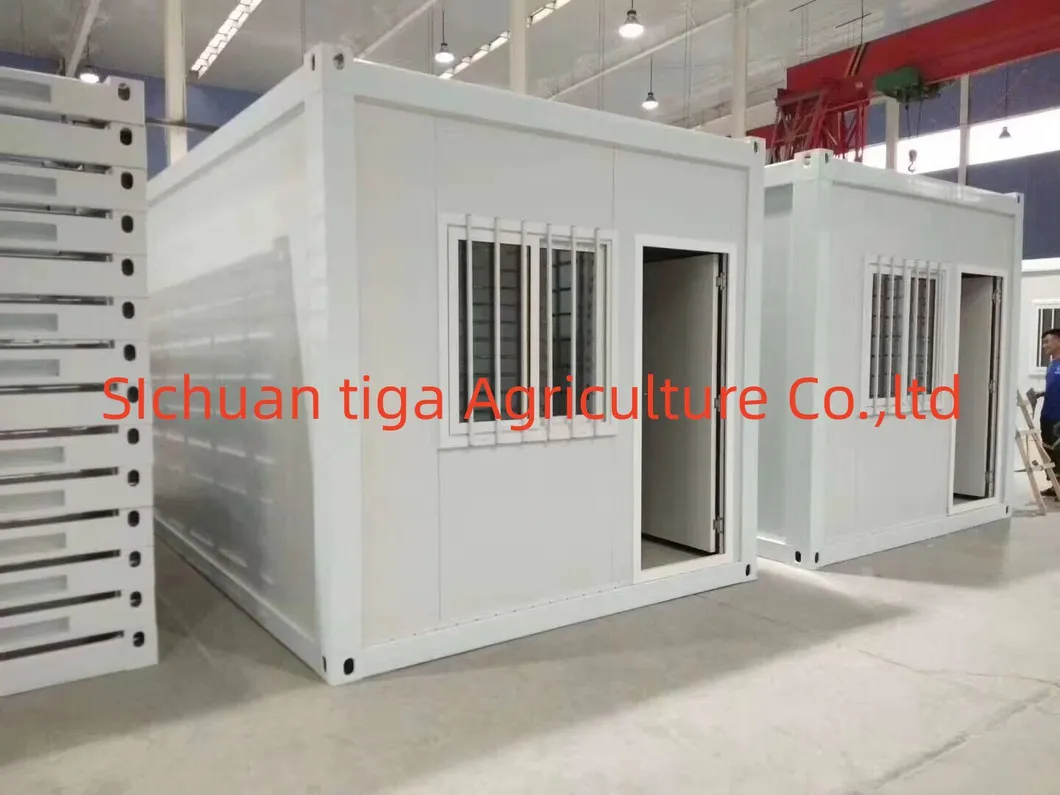

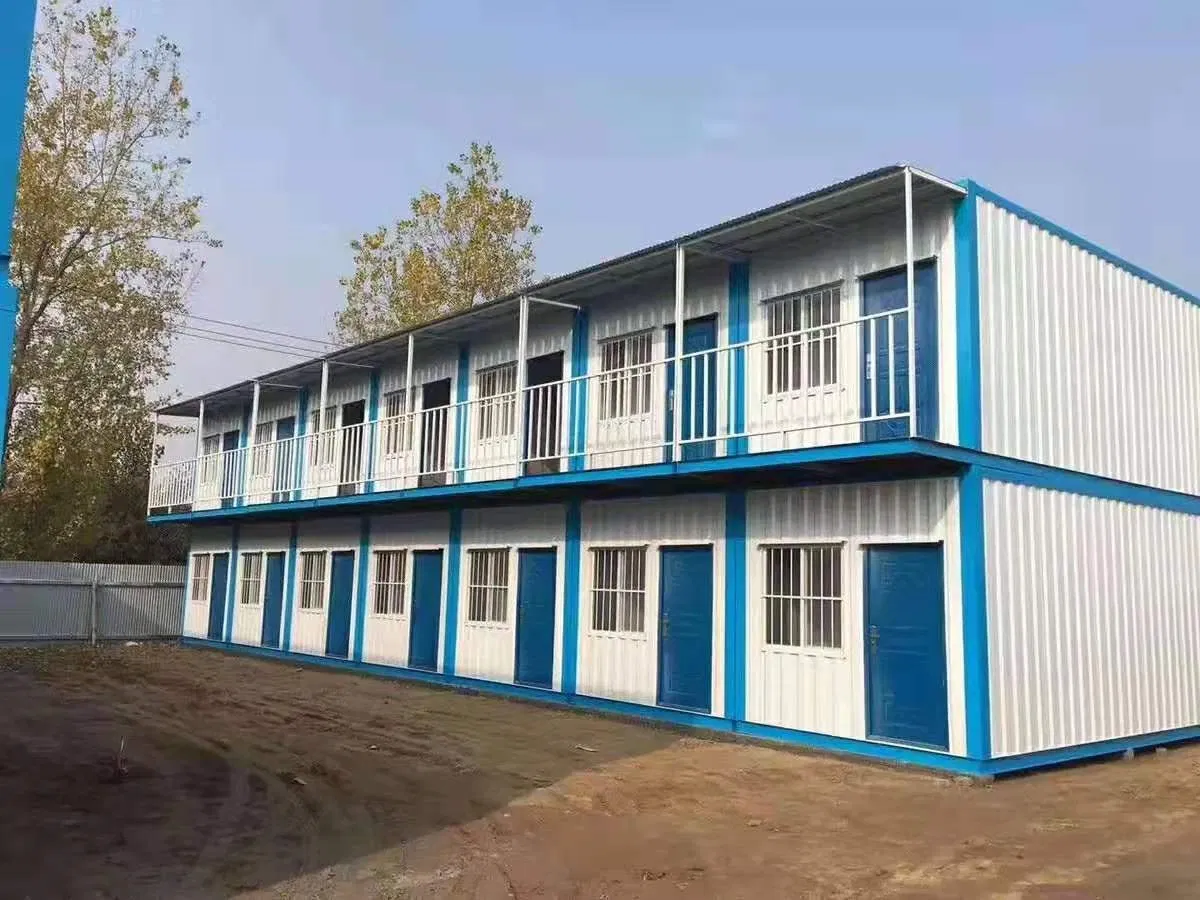

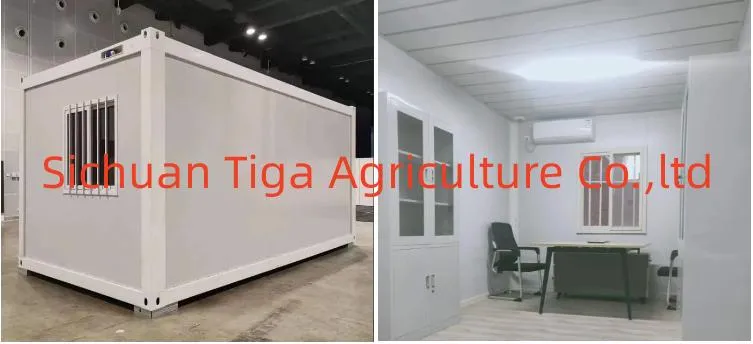

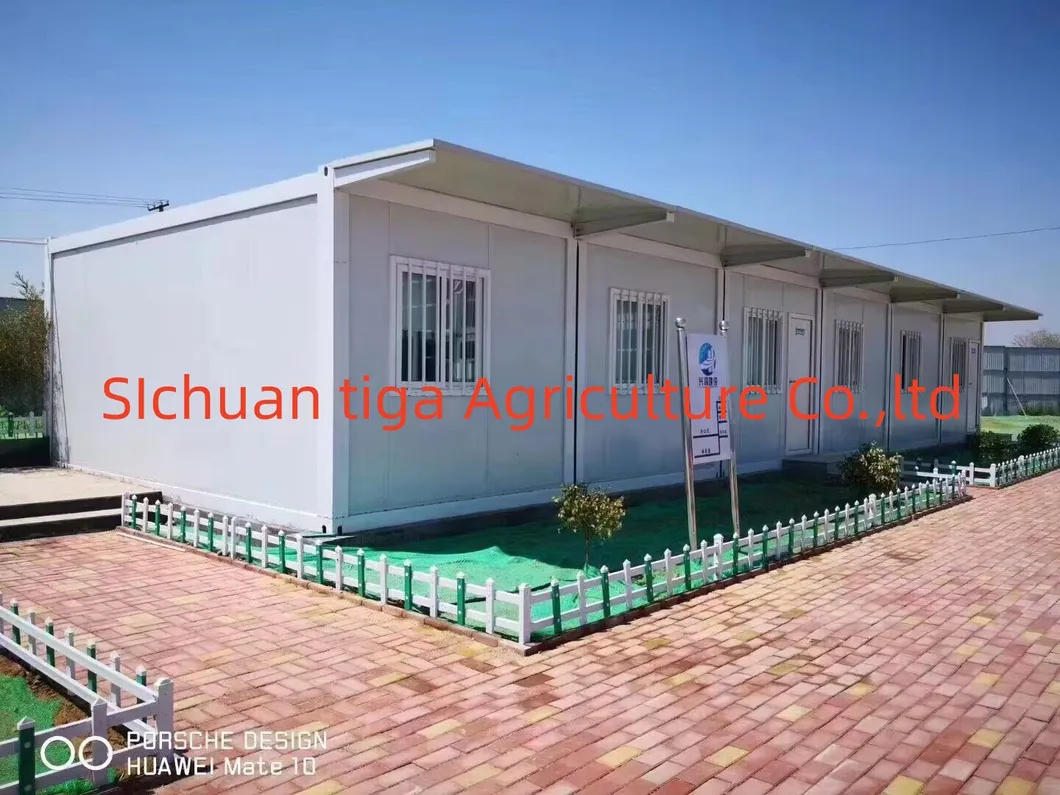

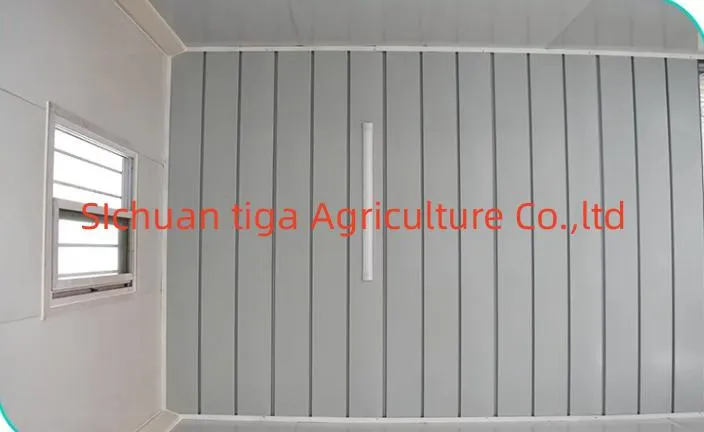

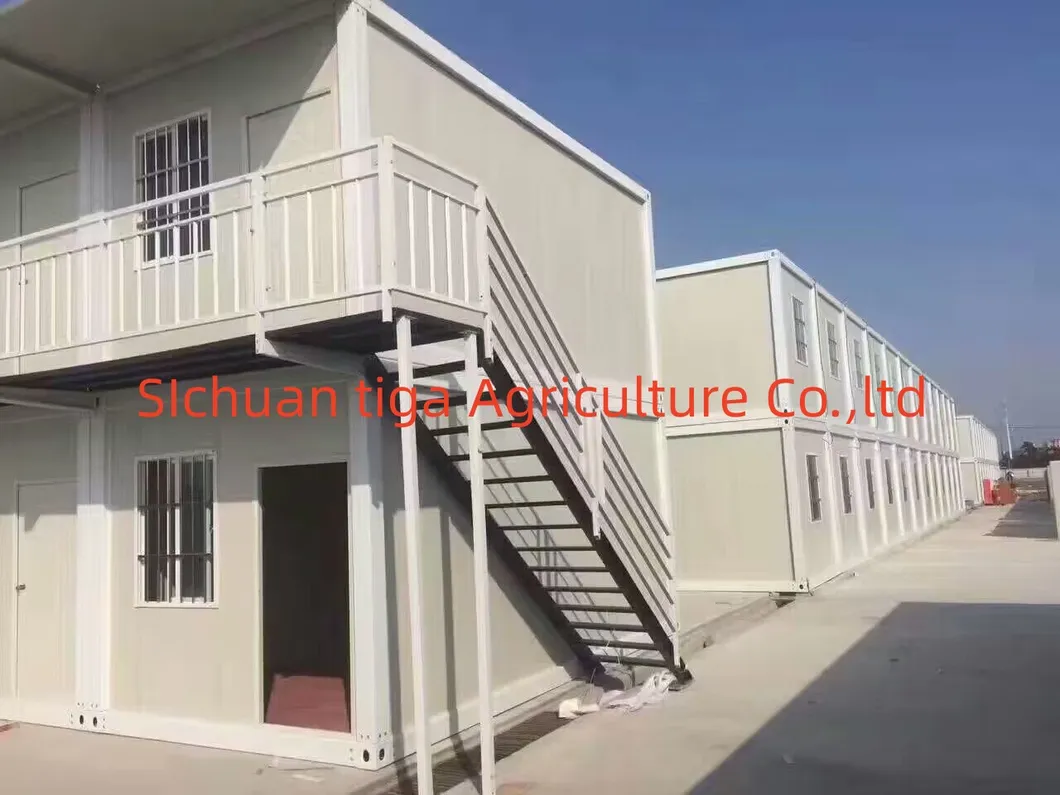

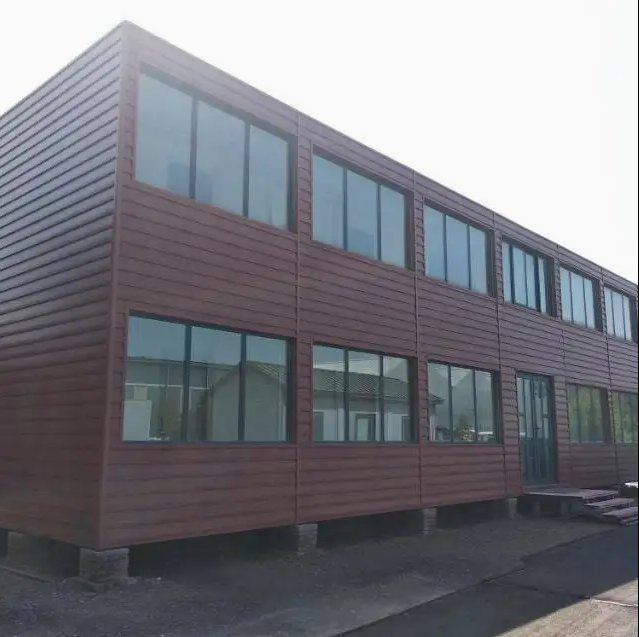

Related Project Pictures

Frequently Asked Questions (FAQ)

Q1: How long does a container house last?

A: The standard service life of our container houses is approximately 10 to 15 years, depending on the environment and maintenance.

Q2: How fast can a unit be installed?

A: With a team of 6 skilled workers, a single unit can be fully installed in just about 2 hours.

Q3: Is the structure resistant to natural disasters?

A: Yes, our houses are designed to withstand Grade 8 earthquakes and wind speeds of up to 210km/h.

Q4: Can these containers be stacked?

A: Yes, our flat pack containers are structural sound and can be safely stacked up to 3 floors high.

Q5: Are the units waterproof?

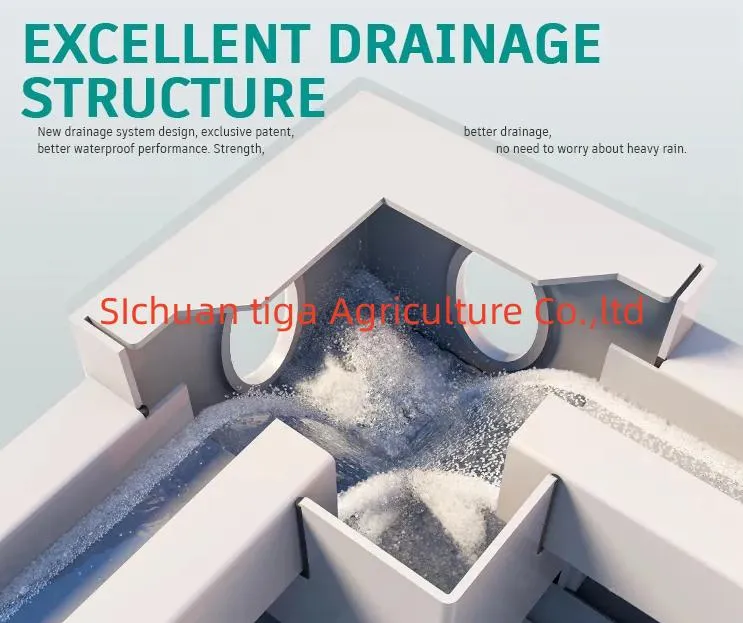

A: Absolutely. We use a total-sealed-top and corner-draining system to ensure no water leakage on the roof.

Q6: How are they transported?

A: For efficiency, 6 units can typically be loaded into one 40HQ standard shipping container for sea or train transportation.
